Square Paper Fiber Drum Machine Production Line is an automated equipment specially designed for producing square paper fiber drums. The production line integrates multiple processes such as cardboard forming, gluing, edge pressing, cutting, etc. It is easy to operate, efficient and stable.
Whatsapp：
+8617838313982E-mail：
[email protected]Square Paper Fiber Drum Machine Production Line is an automated equipment specially designed for producing square paper fiber drums. The production line integrates multiple processes such as cardboard forming, gluing, edge pressing, cutting, etc. It is easy to operate, efficient and stable. It is widely used in packaging, chemical, food and other industries. It is environmentally friendly and recyclable, suitable for mass production, and improves production capacity and quality.

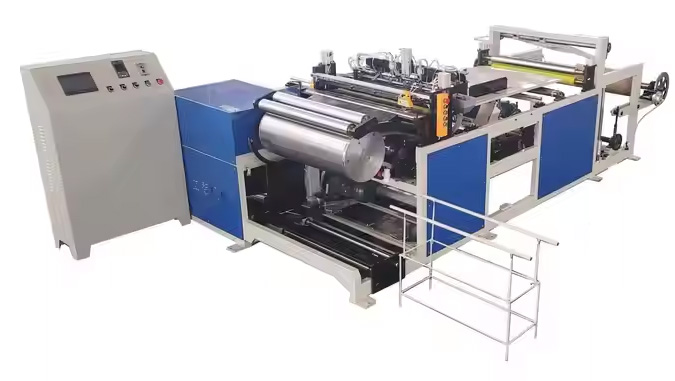

Integral barrel rolling machine, the material rack and the machine are integrated, easy to operate, small footprint, and used for customized height paper rolling. Split barrel rolling machine, the paper rack is movable, with a slitting knife rack, suitable for wide paper, and has strong versatility.
Parameter
| Model | JYD-820 | JYD-1100 |
| Maximum jumbo roll diameter | 1300mm | 1300mm |
| Maximum jumbo roll width | 800mm | 1080mm |
| Square tube width range | 240-400mm | 240-400mm |
| Round tube diameter | 240-450mm | 240-450mm |
| Paper weight | 280-360gsm | 280-360gsm |
| Gluing method | Single layer | Single layer |
| Square tube produce speed | 150pcs/h | 150pcs/h |
| Round tube produce speed | 200pcs/h | 200pcs/h |
| Power | 10.5KW | 12KW |
| Weight | 2000kgs | 3000kgs |
| Dimension | 4200x2400x1500mm | 4220x2420x1500mm |
Both round barrels and square barrels can be cut, different specifications can be switched directly, with frequency converter, cutting speed is adjustable.
Parameter
| Model | JYD-FQ2640 |
| Width | 260-400mm |
| Capacity | 300pcs/h |
| Power | 1.5KW |
| Number of operators | 1 |
| Area | 1.5M*1.7M |

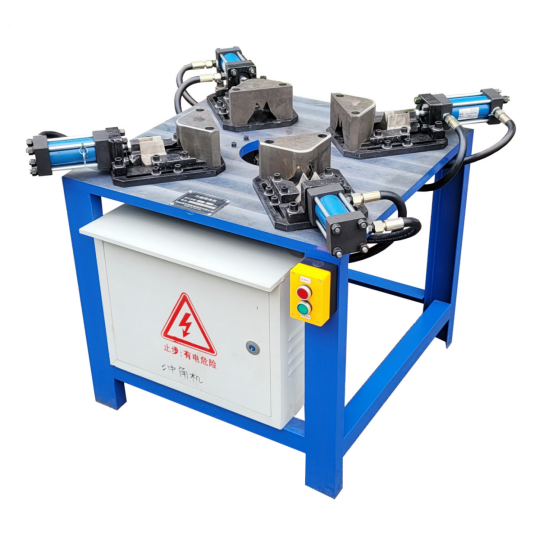

Cut 4 corners at a time, with neat cuts
Parameter
| Model | JYD-CJ2640 |
| Width | 260-400mm |
| Capacity | 300pcs/h |
| Power | 1.5KW |
| Number of operators | 1 |
| Area | 1M*1.5M |

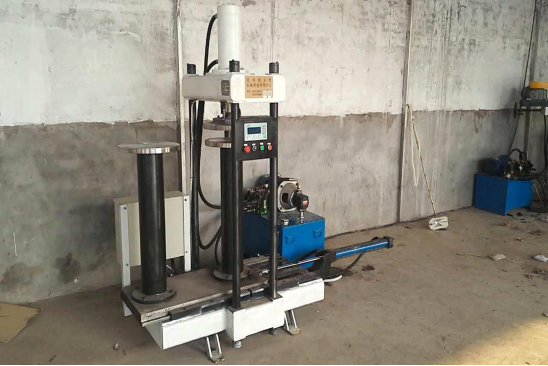

Double-station folding
The worktable moves smoothly, with hydraulic buffers at both ends.
Computer control, adjustable holding time, automatic counting, manual and automatic modes, easy and safe operation
Parameter
| Model | JYD-ZB2640 |
| Width | 260-400mm |
| Height | 90-760mm |
| Capacity | 140-180pcs/h |
| Power | 6KW |
| Number of operators | 1 |
| Area | 2M*2.2M |
| Pressure | 10MP |
4-station press
The worktable moves smoothly, servo motor control, precise positioning.
Computer control, adjustable holding time, automatic counting, manual and automatic modes, convenient and safe operation
Parameter
| Model | JYD-YL2640 |
| Width | 260-400mm |
| Height | 90-760mm |
| Capacity | 240pcs/h |
| Power | 7.5KW |
| Number of operators | 1 |
| Area | 2M*3.5M |
| Pressure | 10MP |
| Main cylinder diameter | 200mm |
| Auxiliary cylinder diameter | 160mm |

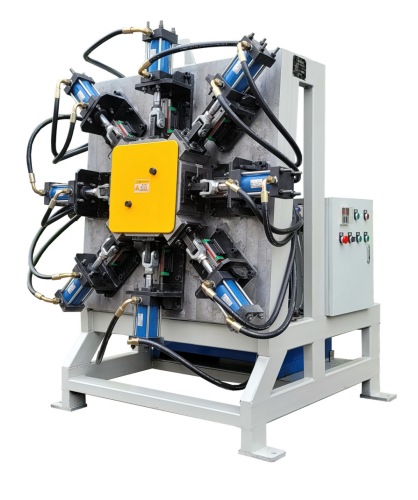

4 corners and 4 sides are formed at one time.
After the barrel mouth is formed, the appearance is beautiful and smooth.
Parameter
| Model | JYD-SK2640 |
| Maximum Height | 160mm |
| Capacity | 180pcs/h |
| Power | 6KW |
| Number of operators | 1 |
| Area | 1.8M*2M |

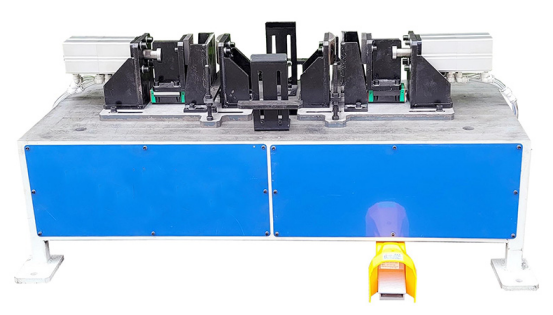

This machine uses pure pneumatic power
It can punch different hole types and can be customized according to customer requirements
Parameter
| Model | JYD-CK2640 |
| Width | 260-400mm |
| Capacity | 350pcs/h |
| Number of operators | 1 |
| Area | 0.5M*1M |
