Fully Automatic Barrel Rolling Paper Tube Machine For Sale

Fully automatic barrel rolling paper tube machine can be used to roll round paper barrels.There are two types: with automatic veneer and without veneer. The specifications are 820 and 1100, which can be customized according to actual production needs.

  Description

Fully Automatic barrel rolling paper tube machine Introduction

The paper tube produced by the fully automatic parallel roll paper tube machine has the characteristics of high strength, elasticity, good sealing, low reaction with chemicals, no oxidation, and no pollution.Compared with steel drums, the packaged products have the advantages of anti-static, light weight, easy recycling, short processing cycle, and low cost. It is widely used in medical, chemical (white latex, dyes, etc.), food, handicrafts and other industries.

The material composition of the fully automatic barrel rolling paper tube machine: paper (kraft paper, yarn tube paper, etc.), glue (polyvinyl alcohol glue, starch glue, environmentally friendly clear glue, etc.).

fully automatic barrel rolling paper tube machine

Fully Automatic Barrel Rolling Paper Tube Machine Parameters

Model JYD-820 JYD-1100
Maximum jumbo roll diameter 1300mm 1300mm
Maximum jumbo roll width 800mm 1080mm
Square tube width range 240-400mm 240-400mm
Round tube diameter 240-450mm 240-450mm
Paper weight 280-360gsm 280-360gsm
Gluing method Single layer Single layer
Square tube produce speed 150pcs/h 150pcs/h
Round tube produce speed 200pcs/h 200pcs/h
Power 10.5KW 12KW
Weight 2000kgs 3000kgs
Dimension 4200x2400x1500mm 4220x2420x1500mm

Fully Automatic Barrel Rolling Paper Tube Machine Features

Environmentally friendly materials: 100% recyclable paper is used to meet environmental protection requirements and reduce the use of plastics and metals.

Efficient production: The fully automatic barrel rolling paper tube machine has a high degree of automation, can produce in large quantities, and has high efficiency.

High precision: The mechanical precision is high and can produce square tubes with precise dimensions.

Versatility: Square tubes of different sizes and thicknesses can be produced to meet different packaging needs.

Easy to operate: The fully automatic barrel rolling paper tube machine is user-friendly, easy to operate and maintain.

Fully Automatic Barrel Rolling Paper Tube Machine Uses

Packaging industry: used to produce environmentally friendly packaging materials, such as food packaging, cosmetic packaging, etc.

Construction industry: fully automatic barrel rolling paper tube machine is used to make temporary structures or supports.

Logistics industry: fully automatic barrel rolling paper tube machine is used to make lightweight but strong transport packaging.

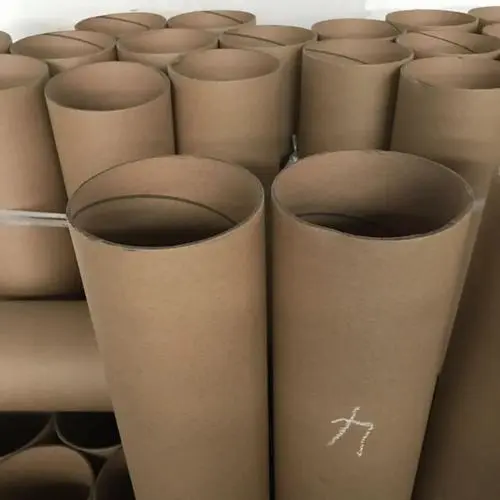

fully-automatic-barrel-rolling-paper-tube-machine-application

Round Paper Tube Produce Production Process

  1. Paper supply: Use a roll paper holder to install a large roll of paper on the machine.

The paper is transported to the forming area through the paper feeding device.

  1. Gluing:

Apply a layer of environmentally friendly glue, usually water-based glue, on the surface of the paper to ensure that the paper can be firmly bonded after forming.

  1. Winding molding:

After the paper is glued, it is gradually rolled into a square tube through a forming mold. During the forming process, the paper is stacked layer by layer to form a round paper barrel with a certain strength and hardness.

  1. Pressurized bonding:

The paper tube after winding enters the pressurized area, passes through the pressure roller or other pressurized equipment, so that the glue is fully bonded and fixed.

  1. Cutting: The long paper tube after forming is cut according to the required length to form a single barrel body. Use an automatic cutting machine for precise cutting to ensure that the size of each barrel body is consistent.

Bucket cover production process

  1. Paper cutting:

Cut out paper pieces of appropriate size from the roll paper for making barrel covers. The size of the paper pieces is adjusted according to the size of the barrel.

  1. Multi-layer stacking:

Multi-layer paper pieces are stacked together to increase the thickness and strength of the barrel cover. Environmentally friendly glue is applied between each layer of paper to ensure that the layers are firmly bonded.

  1. Compression molding:

The stacked paper pieces are placed in the mold and pressed by the compression molding equipment to form the basic shape of the barrel cover.

Finally, the various components are assembled and bonded and fixed by gluing and pressurizing equipment.

Customer Support:

When you purchase our fully automatic barrel rolling paper tube machin, you will enjoy comprehensive customer support services, including:

Professional installation and commissioning: ensure the normal operation of the equipment.

Technical training: provide comprehensive training for your operators to ensure that they can operate the fully automatic barrel rolling paper tube machin.

After-sales service: fast-response after-sales support to solve your worries.
