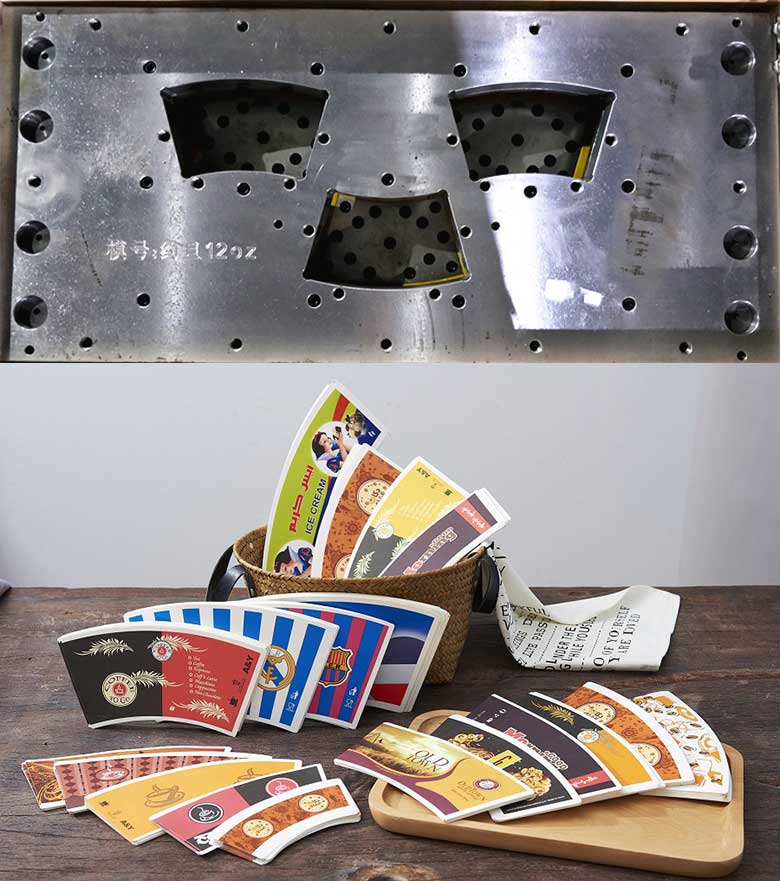

Roll automatic punching machine is a good choice for punching and die cutting paper cup fan with different size by changing molds, high speed and good performance with stripping.
Whatsapp：
+8617838313982E-mail：

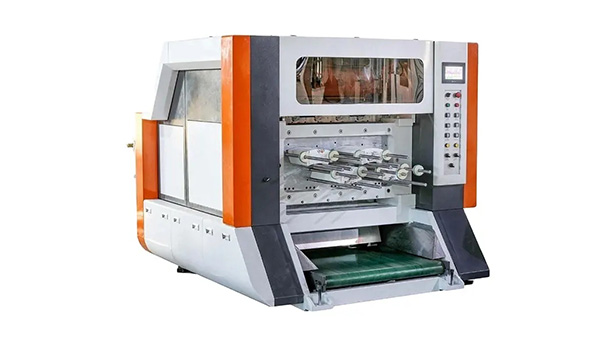

[email protected]High-Speed Roll Die Puching Machine is the best associated equipment for flexo printing machine.

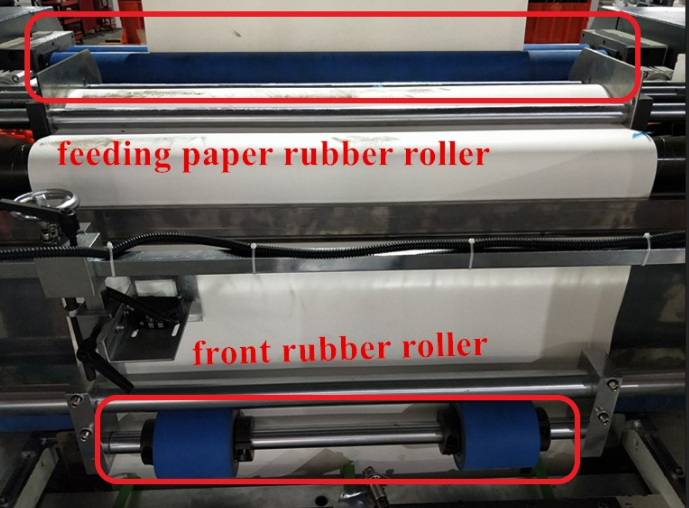

1.The center gravity of rubber roller move forward to stabilize the machine structure, and shorten the distance of feeding paper. That minimizes jitter; makes sure paper feeding stable and fast.
2.The front rubber roller adjusts the balance of paper in horizontal direction.
3.Machine adopt IOT technology. Not only Customer can supervise the machine operation situation on Mobile APP, manufactuer also can through this app to fullful remote control to provide the aftersale service. So both of two parts can save the service time and money.

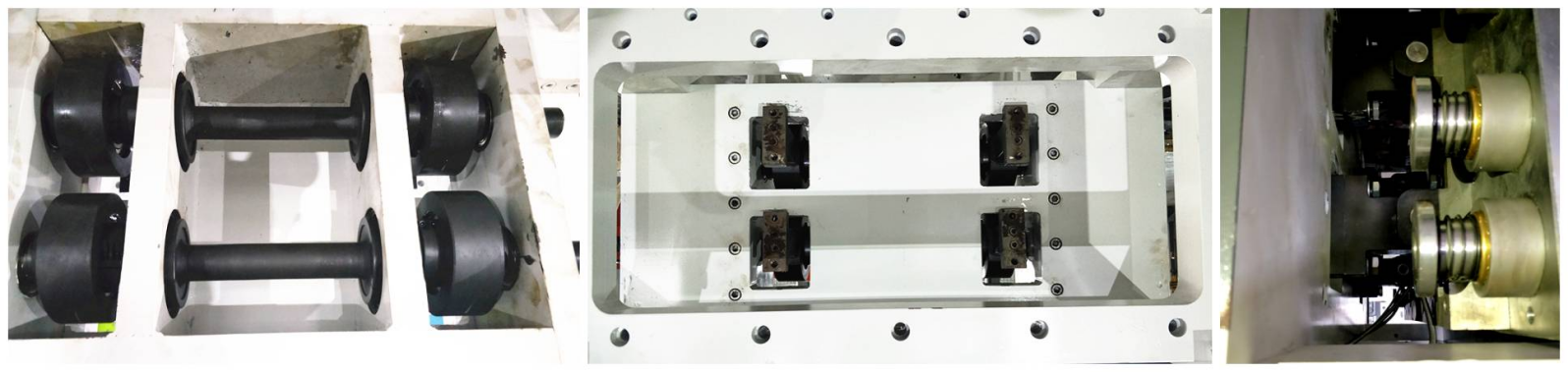

4.Instead of two links, new type die punching machine adopts four links. The metal die connected by four joints, the support force enhanced. It prolongs machine life, improves the stability; and significantly reduces the noise when machine is running.
|
Type |
JYD-D900 | JYD-D1200 |
|
Production capacity |
300-400times/min(Mechanical speed max400 times) | |
|
Max Paper Convey Width |
930-300mm |
1230-300mm |
|
Maximum cutting size |
850*350mm |
1150*350mm |
|
Total Weight: |
3580KGS |
5100KGS |
|
Overall Dimension: |
3450 x 2100 x 1850 mm |
3450 x 2300 x 1850 mm |
| Total Power: | 9KW |
10KW |
| Suitable Material: |
1120-450g/m2 PE coated paper, white cardboard paper |
|
| Total Power and Air source: | 0.4Mpa; 0.3m³/min; 380V/50HZ (other voltage can be customized) | |
|
Max Roll paper diameter |
1500mm |
|
|
Cut Precision: |
± 0.10mm |
|
|
Mold weight&Size |
900type: 400kg 1050*500*260(mm) 1200type: 500kg 1420*500*240(mm) package size:H370 w560 L1140 |
|
If you need our products please write down any questions, we will reply as soon as possible.
