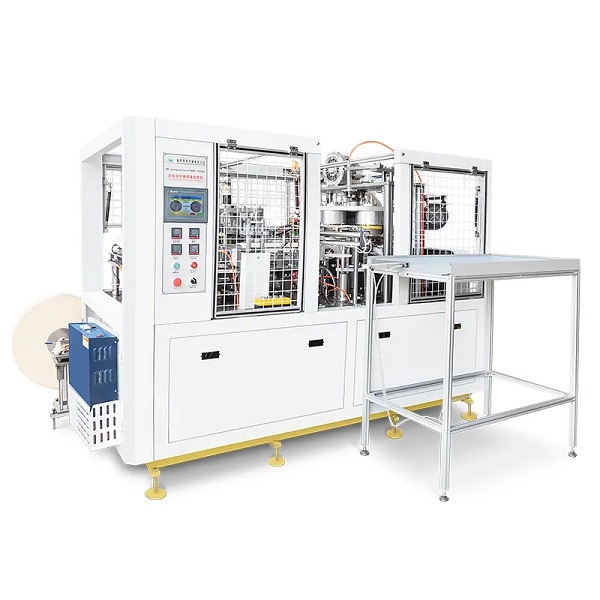

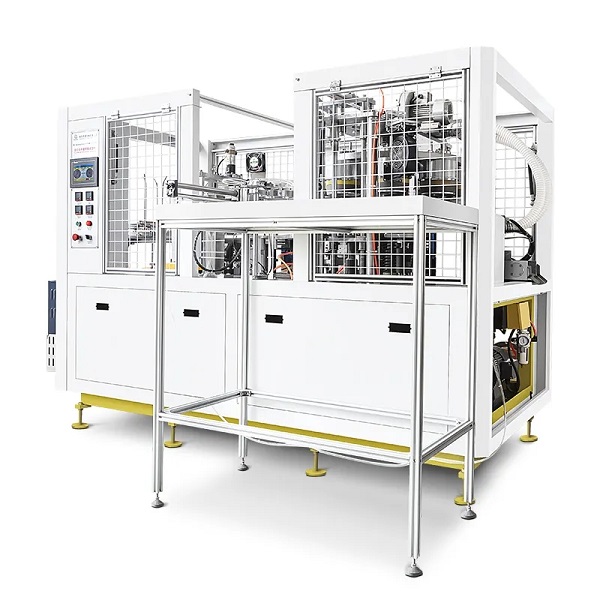

JBZ-OC Bucket intelligent high-speed ultrasonic paper bucket machine speed is 50-60 pcs each min. The cup size range is from 500-1800ML. it adopts the open cam mechanism, gear transmission, and longitudinal axis structure. The automatic oil lubrication system guarantees all mechanical parts work more smoothly.
Whatsapp：
+86 17838313979E-mail：

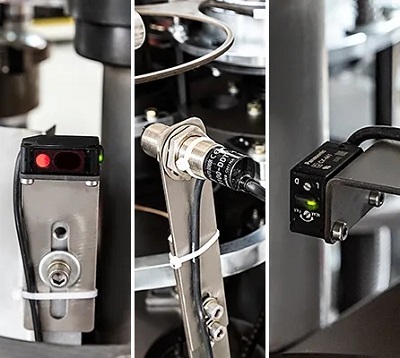

[email protected]JBZ-OC Bucket intelligent high-speed ultrasonic paper bucket machine is equipped with a PLC control system and failure sensor detecting system to detect abnormal work and improve the stability and life of the machine. It can finish the whole process including paper feeding, side sealing, cup bottom punching & feeding, hot air bottom heating, knurling, cup-top curling, and cup stacking.
| Model | JBZ-OCBUCKET 185 Salad Paper Bowl Forming Machine |
| Paper Cup Size | Topdia:140-185mm
Height:50-160mm Bottom dia:128-165 |
| Raw Material | Single/Double PE paper |
| Suitable Paper Weight | 170-320g/m2 |
| Speed | 50-60 PCs/min |
| Total Power | 12KW |
| Power Source | 50/60HZ，380V/440V（better use 380V，3 Phase）or special Power requirement. |
| Total Weight | 3200KG |

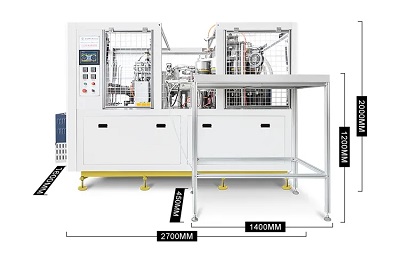

| Package Size (L*W*H) | 2700x1600x2000mm |
| Packing | Seaworthy Wooden Case |
| Air Source Specification | 0.5-0.8MPA, 0.4:6m3/min |
| OEM（Original Equipment Manufacturer）is welcome in our factory | |
Sample display

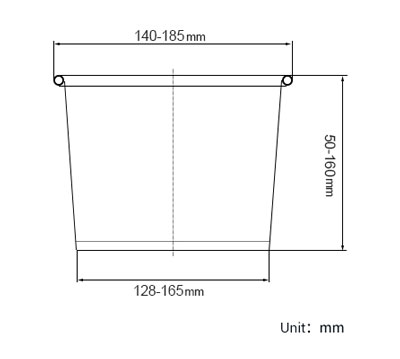

| Cup Bottom Diameter: | |
| Min 128mm ~ Max165mm | |
| Cup Top Diameter: | |
| Min 140mm ~ Max185mm | |
| Cup Height: | |
 |
Min 50mm ~ Max160mm |
| Bottom Knurling Depth: | |
| Min 4mm ~ Max 12mm | |
| Top Curling Rim Diameter: | |
| Popular about 2.54Φ~4Φ |
