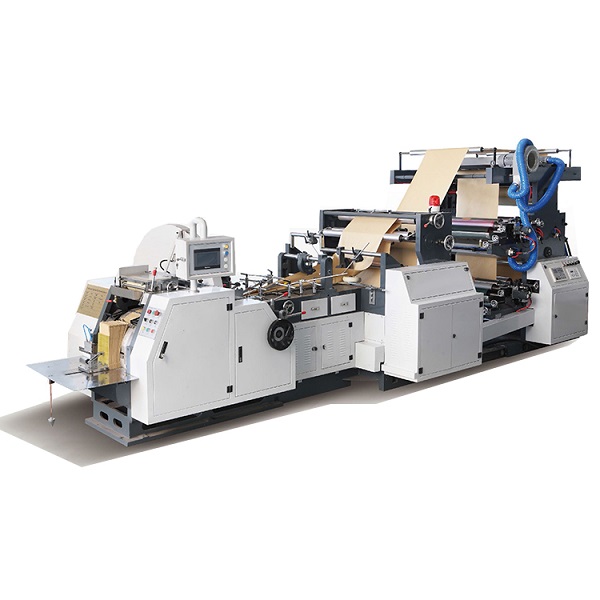

YT Automatic high speed paper bag making machine with printing machine in line

Send Email Inquiry Now

  Description

JD-400/650/850/YT Automatic high speed paper bag making machine with printing machine in line, Remark: 2 colors, 4 colors, 6colors

Main Technical Parameters of JD-400/650/850/YT Automatic high speed paper bag making machine with printing machine in line

Model JD-400 JD-650 JD-850
Paper Weight 40-80g/㎡ 40-80g/㎡ 40-80g/㎡
Bag Length 160-420 mm 220-650 mm 220-850 mm
Bag Width 70-260 mm 70-300 mm 80-350 mm
The Width Of the Paper Roll 260-720 mm 260-840 mm 260-960 mm
Machine Speed 60-400pcs/min 60-400pcs/min 60-400pcs/min
Paper Bag Insert 20-120 mm 20-120 mm 20-120 mm
Machine Power 8kw 8kw 8kw
Machine Total Weight 3000kg 4200 kg 5200kg
Machine Dimension(L*W*H) 7000*2100*1900 mm 7500*2200*2000 mm 7800*2300*2000 mm



Model YT-800 YT-1000 YT-1100
Max Width Substrate 800 mm 1000 mm 1100 mm
Max Printing Width 760 mm 960 mm 1060 mm
Range Of Printing Length 228-1000 mm 228-1000 mm 228-1000 mm
Printing Speed 5-100m/min 5-100 m/min 5-100 m/min
Register Precision ≤ ±0.20 mm ≤ ±0.20 mm ≤ ±0.20 mm
Plate Thickness 2.28 mm 2.28 mm 2.28 mm
Total Power 16 kw 16 kw 19 kw
Weight 1500 kg 1600 kg 1700 kg
Machine Size(L*W*H) 2500*2300*2000 mm 2500*2500*2000 mm 2500*2700*2000 mm
