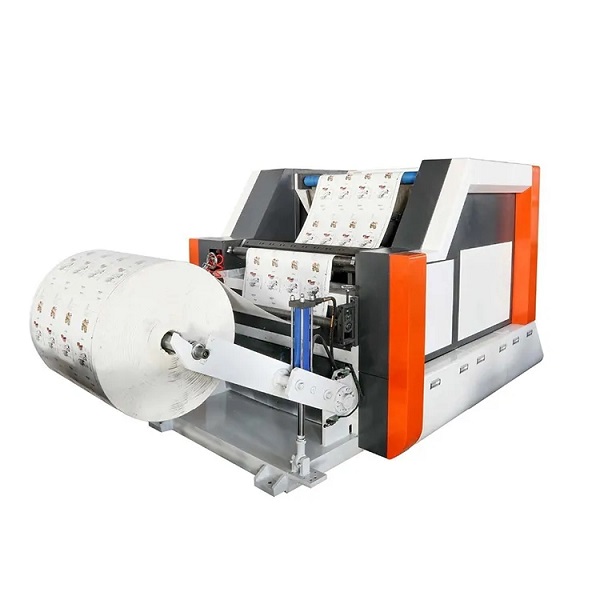

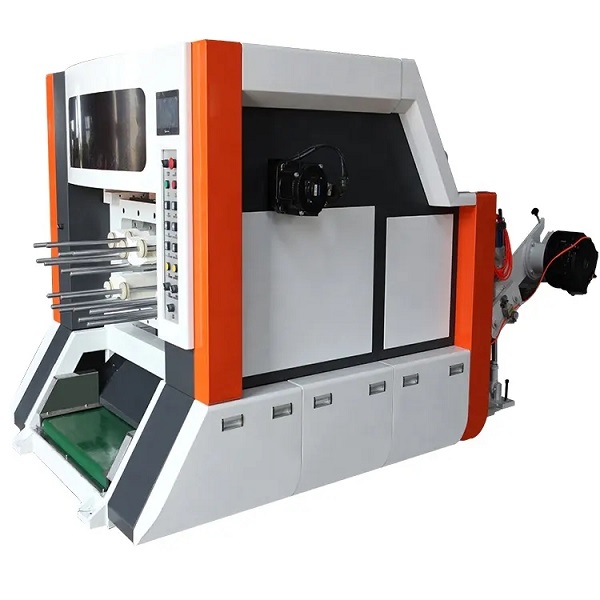

JTCQ-D Roll automatic punching machine

JTCQ-D Roll automatic punching machine is a good choice for punching paper cup fans, paper lids of different sizes by changing molds.


High speed and good performance with stripping. JTCQ-D Roll automatic punching machine is a good partner for the flexo printing machine.

Technical specification of JTCQ-D Roll automatic punching machine

Type JTCQ-D high speed
Cut Precision: ± 0.10mm
Production capacity Metal die made in Germany/Switzerland:  300-380 times/min

Metal die made in China: 200-240 times/min


 Metal die life Metal die made in Germany/Switzerland:  600.000.000 times


Metal die made in China: 200.000.000.times


Max die-cutting size 870*350mm


Suitable Material: 120-450g/m2  PE coated paper, white cardboard paper
Total Power: 9KW
Total Weight: 3580KGS
Overall Dimension: 3200 x 1800 x 1600 mm
Working Air Source: Air pressure 0.4-0.5Mpa
