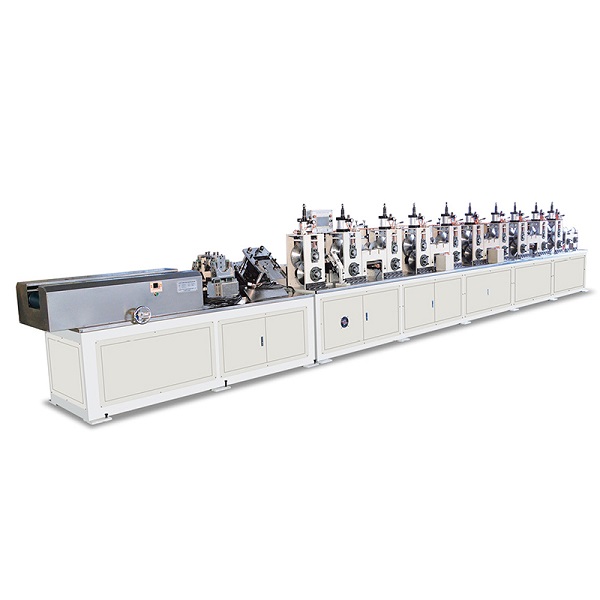

JYD-H60 Brown Paper Angle Protector Machine For L&V Profile

JYD-H60 High speed CNC angle protector machine is suitable for the production of paper angle protectors with a width of 25-100mm and a thickness of 2-8mm.

  Description

The paper angle protector machine can produce 25-100mm width, 2-8mm thickness, L&V shape/profile brown paper corner protector, the highest speed can reach 60m/min.

1. Ten groups of pressure rollers;
2. The maximum speed can reach 60 m/min;
3. JYD-H60 High speed CNC angle protector machine servo tracking cutting, any order length can be set;
4. There are two models of the single corner guard, corner guard + punching (punching or ring) to choose from.

Technical parameter of JYD-H60 High speed CNC angle protector machine

Technical parameter
Paper Angle

Protection

Specification

Wide20-100mm
Paper tube thickness Long50-9000mm
Bend length Thick2-8mm
Production speed 0-60m/min
paper layers 12layers
Forming roller 10 groups
Double roller heating 4groups
way to control Frequency
Cut off method Automatic CNC cutting
Number of operators 1-2
total weight 5500kg
