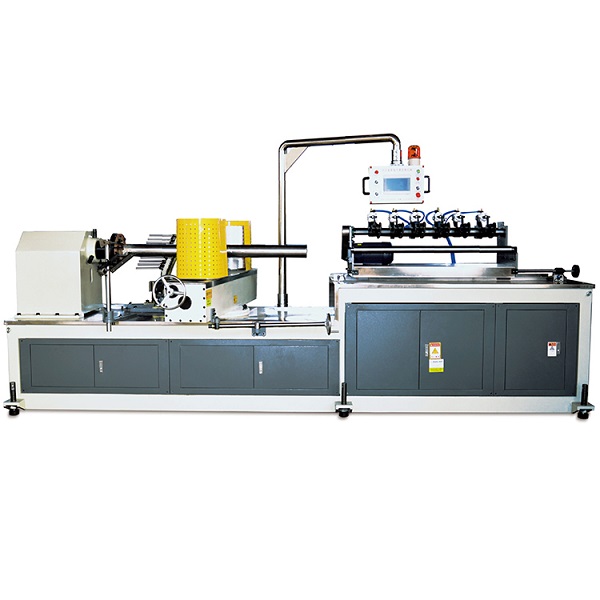

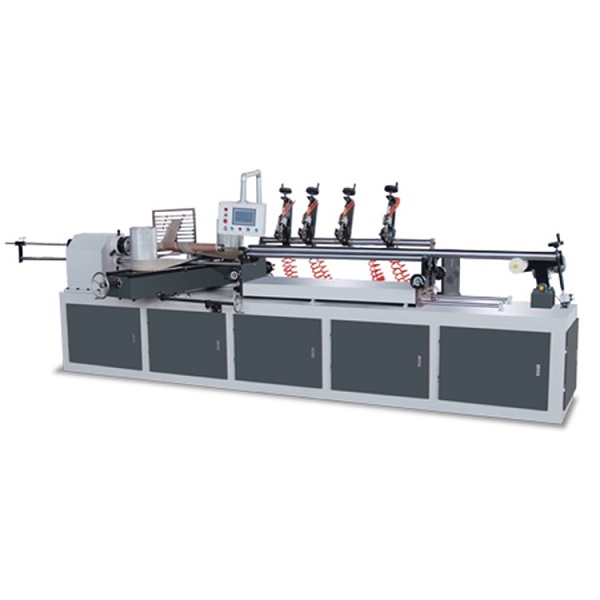

JYD-JG150D Two-head multi-knife CNC paper tube machine is mainly used for the production of small and medium diameter and short length paper tubes such as film tubes and packaging paper cans.
JYD-JG150D paper tube machine with multiple cutters is mainly used for the production of small and medium diameter and short length paper tubes such as film tubes and packaging paper cans.
1. Automatic gluing;
2. Noise <65 decibels;
3. Automatic speed change and automatic recovery during cutting;
4. The circular knife actively cuts, the cut is smoother, and the performance is more stable;
5. The main engine adopts electric angle adjustment, which is convenient to operate;
6. Automatic cutting, automatic drop tube, automatic stop function for paper shortage or paper break;
7.JYD-JG150D Two-head multi-knife CNC paper tube machine the mold is fixed by flange and female-female buckle, which is easy to replace.
8.The cutting table is equipped with servo synchronous multi-knife cutting, which can complete the production of multiple shorter paper tubes online;
1. Depending on the paper tube, the winding speed is between 0-25 (m/min);
2. Two non-resistance heads greatly improve the strength of the paper tube;
3. Suitable for paper tubes with a diameter of Ø20-150mm; production of paper tubes with a thickness of 1-5mm and a minimum cutting length of 90mm;
4. JYD-JG150D Two-head paper tube machine with multiple cutters the main motor is Shanghai Strong Speed (7.5KW). The output power of this product is strong and has the function of speed regulation;
5. In the case of paper breakage and paper shortage, the two fixed-length modes of numerical control and light control can be quickly switched by themselves, which not only reduces waste but also makes the operation more convenient and quick;

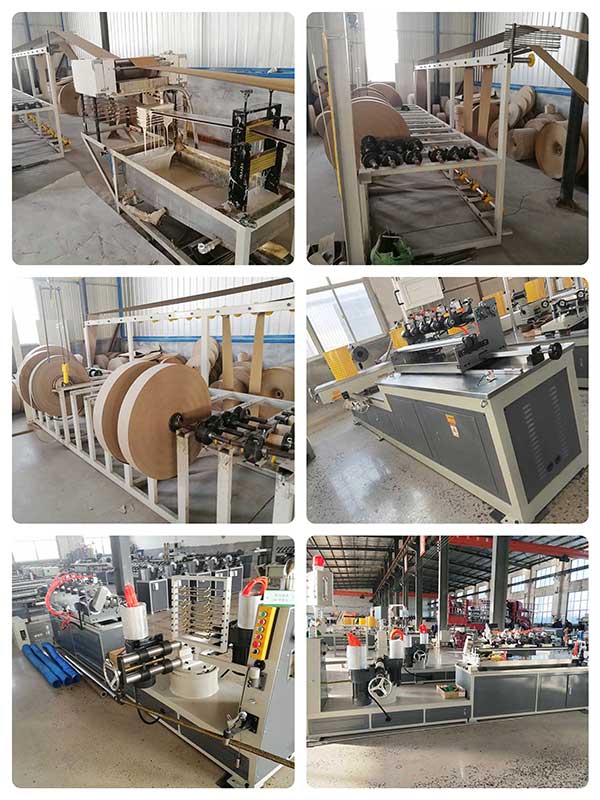

Here is the automatic paper tube machine youtube video working process in our factory for your reference!!
|Number of paper layers||3-12layers|
|Paper tube diameter||20-150（mm）|
|The thickness of the pute||1-8（mm）|
|Minimum pipe-cutting length||90mm|
|Number of operators||1-3|
Except the paper tube machine, we can also support you the paper tube cutting machine and the related paper tube making machine, if you have anu request of the paper processign machine, welcoem to contact us freely to get 100% free quotation online!!
If you need our products please write down any questions, we will reply as soon as possible.
