Description

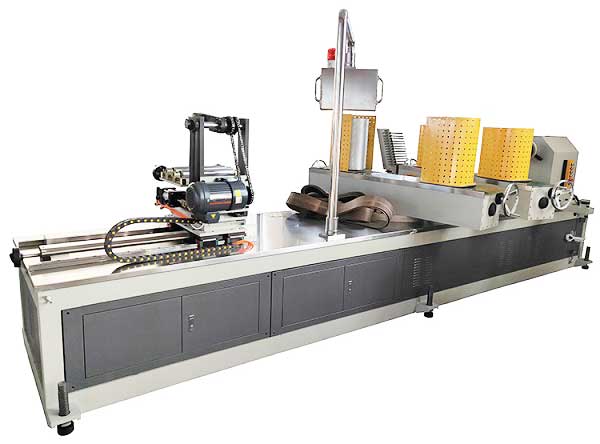

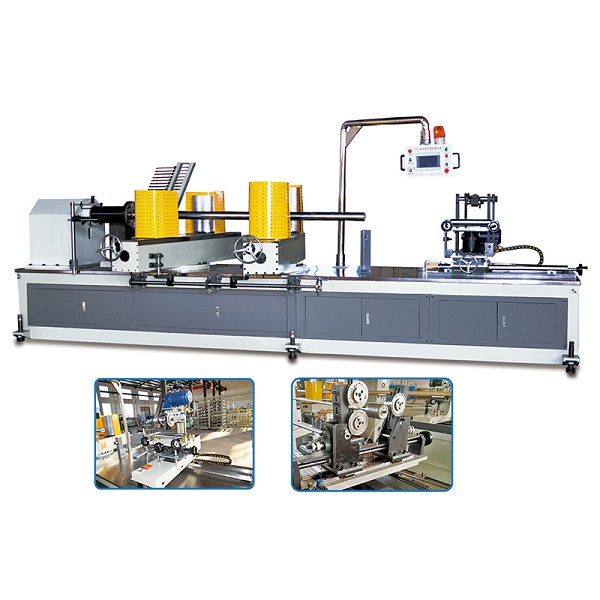

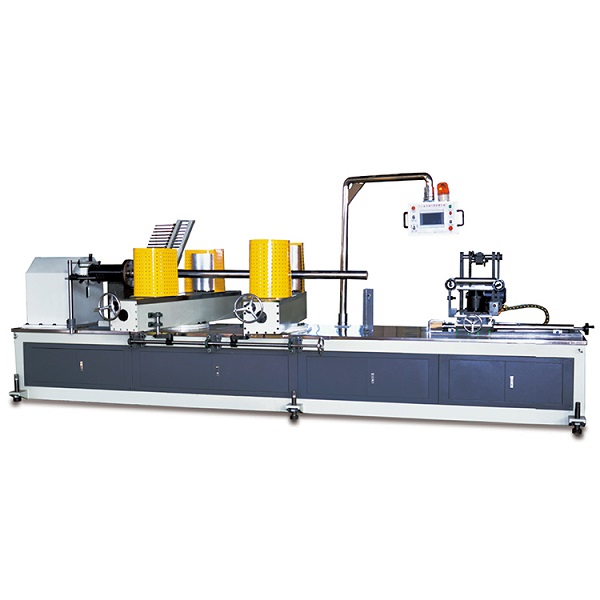

JYD-JG200 spiral paper tube making machine is mainly used for toilet paper tube, film tubes, tape tubes, cling film tubes, printing tubes, leather tubes, logistics packaging tubes, papermaking tubes, chemical fiber paper tubes Production of various industrial pipes.

Kraft Paper Tube Making Machine Advnatages

1. The main engine adopts electric angle adjustment, it is convenient to operate;

2. JYD-JG200 kraft paper tube making machine the mold is fixed by a flange and female-female buckle, which is easy to replace;

3. The cutting table is equipped with servo synchronous circular knife cutting, it can complete the production of multiple short paper tubes online;

Spiral Paper Tube Making Machine Features

1. According to different paper tubes, the reeling speed is between 0-25(m/min).

2. The four heads without resistance greatly improve the strength of the paper tube.

3. The spiral paper tube making machine can be stabilized horizontally by adjusting the base plate at the bottom of the host.

4. The main engine motor is Shanghai’s strong speed (15kw), the output power of this product is strong, and it has the function of adjustable speed.

5. JYD-JG200 paper tube machine is suitable for the production of the paper tube with an inner diameter of Ø30-200mm; a paper tube thickness of 1-15mm.

8. The two fixed-length modes of numerical control and light control can be quickly switched by themselves in the case of paper break and paper shortage, it can not only reduce waste but also make the operation more convenient and fast.

Here is the Kraft Paper Tube Making Machine youtube video working process in our factory for your reference!!

Spiral Paper Pipe Making Machines Specifications

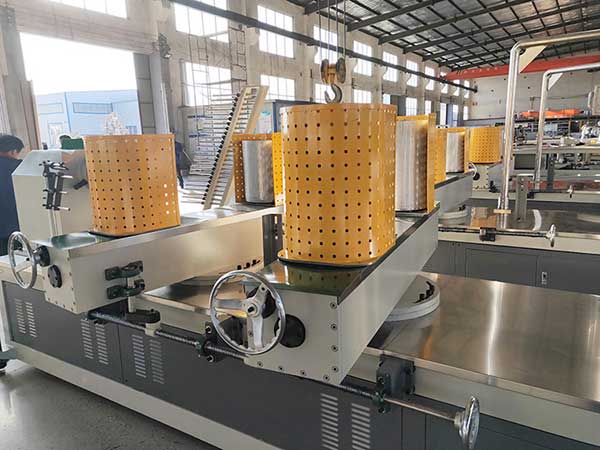

JYD-JG200 Spiral Paper Tube Making Machine Components

Mobile paper rack

The paper frame shaft is a round steel shaft, it can make the paper run more smoothly;

The upper paper rack can be completed by adjusting the angle electrically, the operation method is simple and labor-saving;

The upper paper frame and the glue frame are combined movable lifting paper frame and glue frame, this device is beneficial to the quick adjustment of paper tubes with different diameters;

The hoisting and loading paper is an electric hoisting device, it makes paper loading faster and is suitable for the production of paper tubes with a thickness of ≥10mm;

The hanging paper holder of the paper holder, humanized design holds the paper holder with one hand, and operates the switch with one hand, so that one person can easily complete the lifting process;

The paper blocking plate on the paper holder shaft is made of high wear-resistant material and designed with high and low steps, it not only prevents the paper from moving left and right but also makes the paper roll run smoothly. Paper roll movement increases fluency;

The manual adjustability of the paper guide wheel is convenient and fast, which allows the paper to enter the mold in advance and ensure the smoothness of the paper. The height of the upper and lower paper guide wheels is 1.3 meters, it provides sufficient space for the paper to change direction, and the paper is not easy to break;

Mobile glue rack

The squeegee rod has a diameter of 16 optical axes and is not easily deformed;

The tray design of the glued part is more user-friendly and suitable for different grades of paper;

The glue supply of the glue rack adopts a large-flow diaphragm pump, and the paper will not have glue breakage or glue leakage;

The glue tank is made of stainless steel, which has corrosion resistance and greatly enhances the service life of the glue tank;

The glue supply system is pneumatic and automatic glue supply by diaphragm pump, and the speed of glue supply can be changed by adjusting the air pressure, which is convenient and easy to operate;

The rubber hose is a high-wear-resistant silicone tube, the rubber is clean, and the use time is long. The rubber scraper rod can be rotated manually. By rotating the rubber scraper rod, the amount of paper glue is too large due to the accumulation of paper foam on the rubber rod. the quality of the paper tube;

Bottom paper holder

The bottom paper holder is a structure in that the bottom paper is lubricated and glued at one time;

The automatic lubrication system of the backing paper saves labor，improve efficiency and reduce waste;

The tension control of the backing paper controls the air pressure plate by adjusting the pressure of the pneumatic valve to control the tension of the backing paper so that the tension of the backing paper is balanced.

Blanking rack

JYD-JG200 spiral paper tube making machine the sliding support plate of the unloading rack is made of stainless steel, and the high wear resistance of the stainless steel plate greatly improves its service life.
