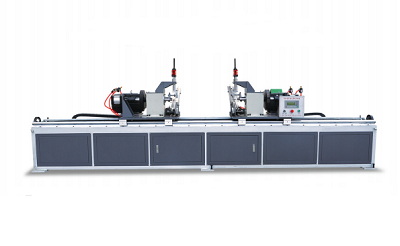

JYD-M76152 Fully automatic head grinding machine is suitable for grinding heads with an inner diameter of 76-152mm and thickness of 3-15mm paper tube (lengths are 500mm, 1000mm, 1500mm, 2000mm, and 2500mm available)
Whatsapp:
+8617838313982E-mail:
[email protected]JYD-M76152 Fully automatic head grinding machine is suitable for the production of large batches of paper tubes with short slitting lengths, and the cutting of high-yield paper tubes. It is widely used in textiles, sanitary products, printing, packaging, and other industries.
JYD-M76152 Fully automatic head grinding machine has a large adjustable range and is easy to operate. It is easy to adjust the length of the paper tube, ensure the length of the paper tube, and use the same speed according to different paper tubes, so as to achieve good results. JYD-M76152 Fully automatic head grinding machine also has many uses. It can shape the finely cut paper tube into a paper tube curling edge with a smooth end surface and inner and outer rounded corners. The adjustable mold quickly rotates in the opposite direction, the two opposing forces are consistent, the adjustable range is large, and the operation is flexible and convenient. There is a locking thread on the grinding head shaft, which is convenient to adjust the length of the paper tube. The machine adopts cam feeding, which can ensure the stability of the length of the paper tube.
1. The cutting time of each knife is only 0.5 seconds, (the thickness needs to be changed);
2. The circuit is controlled by an imported plc programmable controller, with color touch screen man-machine operation;
3. With automatic closing, automatic clamping, and automatic shutdown functions;
4. Stable performance, fully automatic operation and production, automatic fault diagnosis, and early warning;
5. Using servo system positioning, and high-precision ball screw drive, the cutting resolution can reach 0.01mm.
With high machining accuracy, the length error of the finished paper tube can be controlled within plus or minus 0.3 mm.
Paper tube cutting is performed by tungsten steel round blades.
1. Inner diameter of paper tube: 76-152mm;
2. Cutting lengths: 500mm, 1000mm, 1500mm, 2000mm, and 2500mm are available in length.
