Hot Melt Adhesive Labeling Machine Semi-Automatic

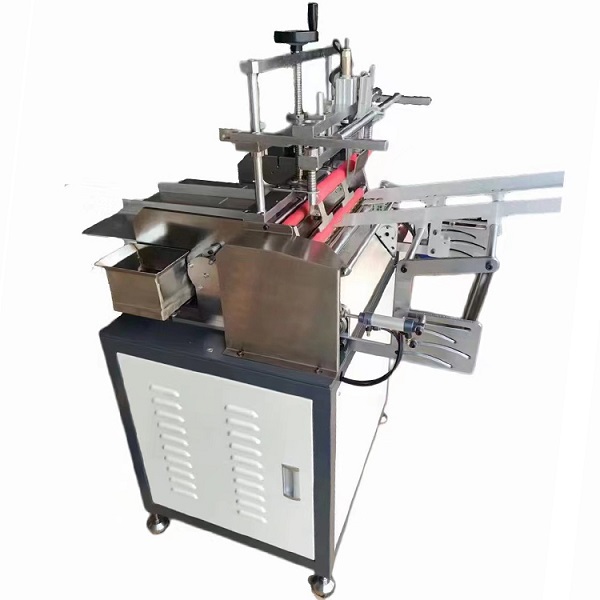

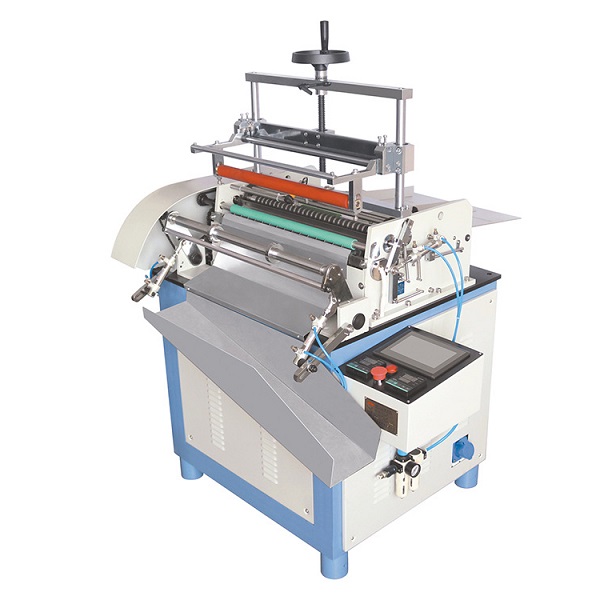

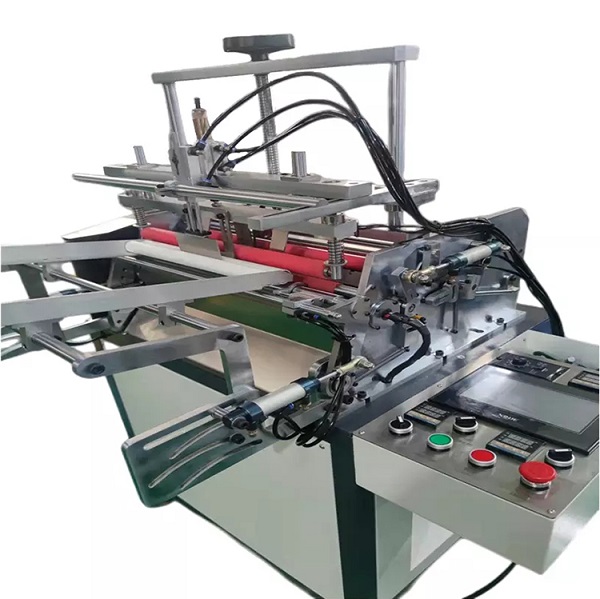

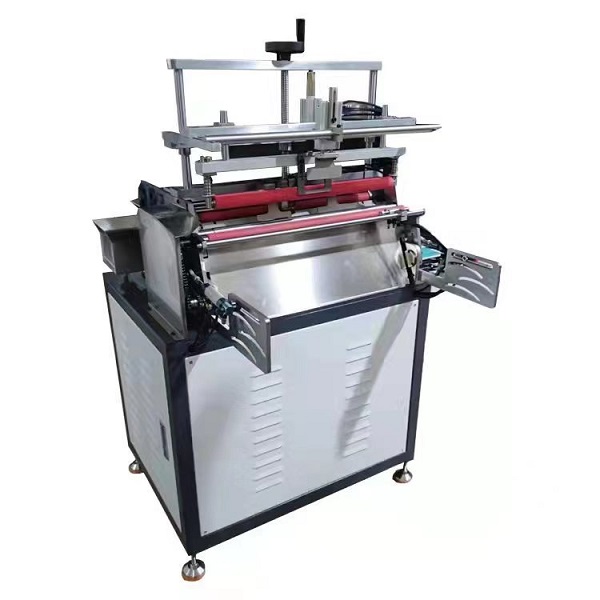

The JYD-TB500 Paper tube labeling machine is suitable for chemical, pesticide, food, paper cans, and other industries.


This paper tube labeling machine is a hot melt adhesive labeling machine with a good labeling effect. It will not open or fall off when exposed to water or humid high-temperature environments. It is equipped with an automatic temperature control heater. There is also a protective device to prevent the glue from melting and causing the motor to not start. It can apply half or full circular labels on cylindrical containers with a diameter of 15-200mm and a length of 30-500mm, with a labeling speed of 10-40pcs/min.

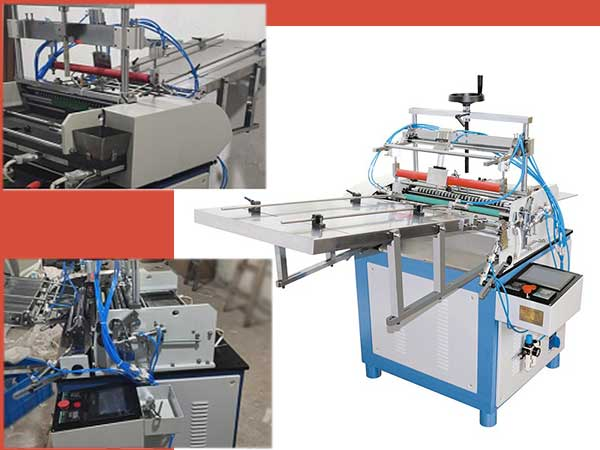

paper tube labeling machine

Hot Melt Adhesive Labeling Machine Advantage

1. Easy to operate, powerful, color touch screen operation, data memory function
2. Quality guaranteed, good label quality, high overlap of labels, no wrinkles or bubbles
3. Stable performance, machine configuration control system, supporting long-term operation
4. Adopting high-power and high-quality motors, energy-saving and durable, ensuring production efficiency and quality
5. The body of the hot melt adhesive labeling machine is made of high-quality stainless steel, spray painted for rust prevention and durability
6. Precision manufacturing, selecting high-precision accessories. All steel adopts national standard models, quenched spindle gears, and thickened mainframes.

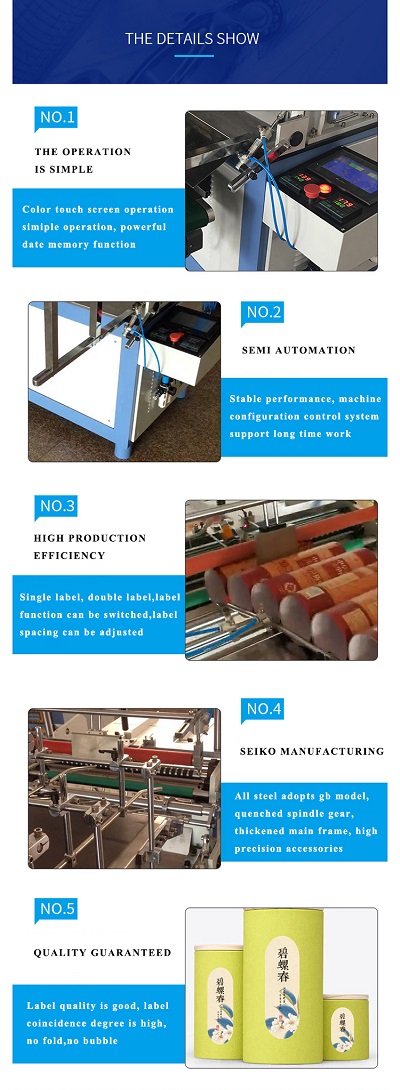

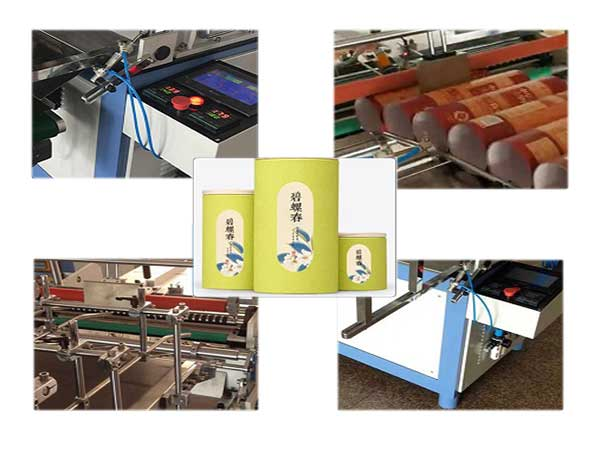

paper tube labeling machine details

JYD-TB500 Paper Tube Labeling Machine Parameter

Model YZH-TB500
Tube length 30-500mm
Tube diameter 15-200mm
Label accuracy ±0.5mm
Working air pressure 0.6MPA
Power 3.6kw
Labeling speed 10-40pcs/min
Label thickness 100-157g
Dimension 1000*1300*1400MM
Gross Weight 290kg

Labeling Application Machine Operation

1. This labeling application machine is suitable for small-batch and multi-variety production.
2. The label function can be switched, and the label spacing can be adjusted
3. One labeling application machine can be used for various paper tubes. Changing the label size or paper tube does not require replacing any parts. It only takes a few minutes to adjust and then work.
4. The operator only needs to put the labels in bulk into the label library, and the photoelectric automatic detection, labeling, gluing, and labeling are all automatically completed by the machine within one second.


Overall, hot melt adhesive labeling machines are widely used in various industries, including food and beverage, pharmaceuticals, cosmetics, daily necessities, etc. Its efficient, precise, and stable labeling enables products to be quickly labeled and packaged on the production line, providing convenience for product production and packaging. If you would like to learn more about the production and packaging of paper tubes, please contact us online for free.
