BT-02 Paper cone making machine (Double cone)

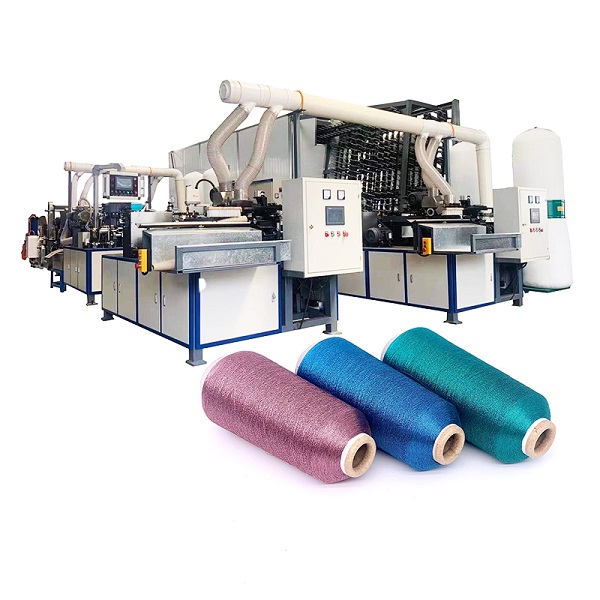

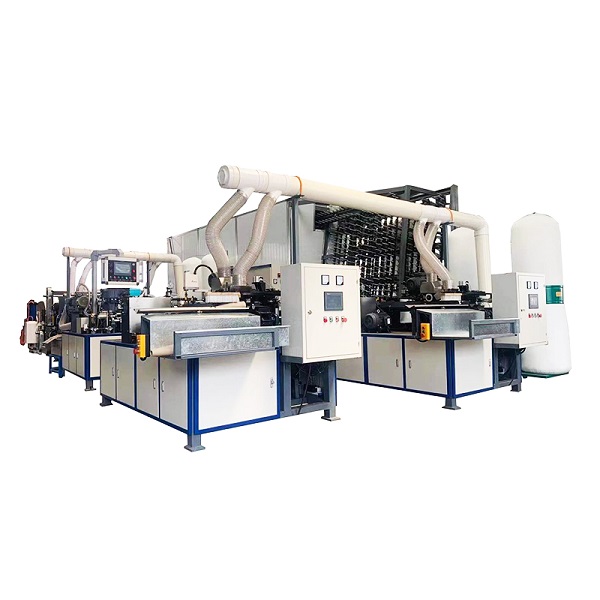

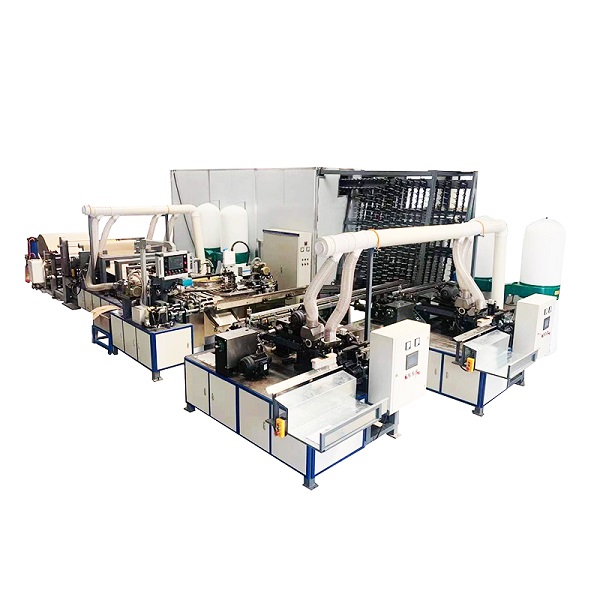

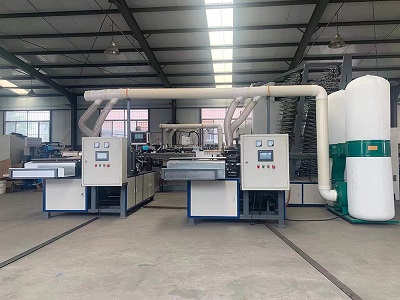

JYDBT-02 Paper cone making machine the paper winding unit is an ideal semi-finished product that undergoes internal and external printing, internal and external edging, paper cutting, gluing, homogenizing, paper cutting, winding, and automatic tube unwinding of raw paper.

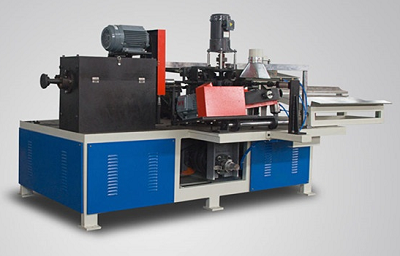

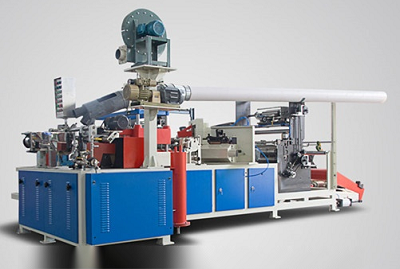

1. Paper Winding Unit

Dimension 6200x2200x1400mm Pneumatic components  AirTAC
 Power 12.63KW photoelectric  Omron
Speed 30-60pcs/min  Xinling
Platform materials Front platform SS50mm  Sliding table Tengqi
  Back platform SS25mm reducer Newstar
Frame materials 50×100  Triangle belt SANLUX
  100×100  Casting 250# Gray iron
PLC Delta  Big shaft  Linear hard optical axis
Servo Controller Delta Electrical appliances CHINT
servo motor Delta Production specifications 3°4°5°9°
Interface Delta Voltage 380V 50HZ/60HZ
Motor Rongcheng Huali vacuum cleaner Vacuum cleaner for dust
Deceleration motor Zhongda Dianji Glue pump diaphragm pump

2. Drying Equipment

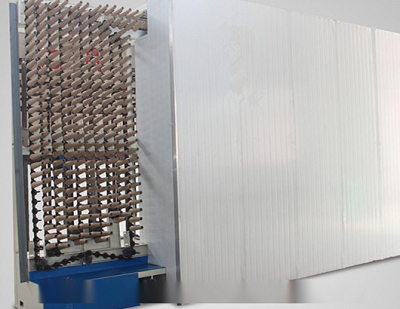

JYDBT-02 Paper cone making machine based on many years of production experience, the most ideal drying equipment is specially made by adopting the best of hundreds of companies. The heat source can be equipped in various forms such as electric drying, coal drying, and steam drying.

Dimension 7600x1200x3200mm
Whole machine drive 1.7KW
Electric heating power 31.6KW
  Customers can customize steam and coal as the heat source
 Speed 30-60pcs/min
 Chain 50.8 double pitch, one-inch heavy chain
 Control System Shared cabinet control with a host
 Big frame No. 8 national standard channel steel
 Main Frame 160×80 national standard rectangular tube
 Warming National standard fireproof, glass wool board
 Deceleration motor Zhongda Dianji

3. Post-sequence finishing parts

JYDBT-02 Paper cone making machine, in this post-sequence finishing part, the semi-finished paper tube from the drying box is automatically loaded, oiled, held head, crimping, napped, punched V-shaped port, counted and inserted, etc. to complete the final processing of the paper tube.
Our company’s engineers have combined years of production experience and adopted the most advanced international numerical control technology to reach the international forefront in terms of paper tube quality, efficiency, stability, and environmental cleanliness.

 Dimension 2500x1500x1400mm
Power 9.4KW
Speed 30-60pcs/min
Platform materials 22 mm steel plate
Frame materials National standard 60×80 rectangular tube
PLC Delta
Interface Delta
cylinder AirTAC
Motor Rongcheng Huali
Deceleration motor Zhongda Dianji
photoelectric Omron
Triangle belt SANLUX
Electrical appliances CHINT
Big shaft Linear hard optical axis
Bearing Haerbin
vacuum cleaner Vacuum cleaner for dust
