Description

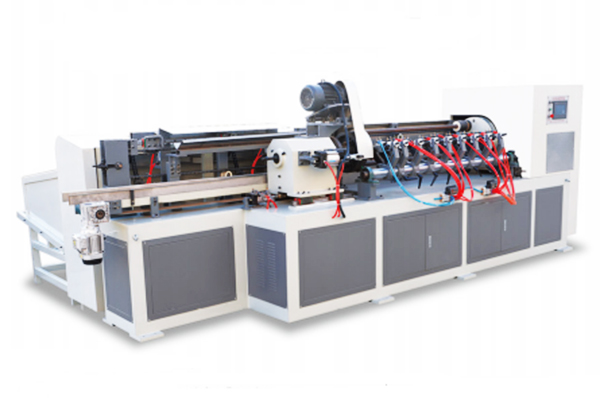

JYDJQ-305585 paper tube fine cutting machine is specially used for fine cutting small paper tubes, with high precision and high efficiency. This CNC small three-axis automatic precision cutting is divided into single-knife and multi-knife. The single knife is generally a servo knife. The shortest cut is 10mm/piece, and the shortest limit of multi-knife is 100mm/piece. Compared with ordinary pipe-cutting machines, this machine has higher efficiency and precision. It is more accurate, the end face is flat, and labor is saved.

Precision Paper Tube Core Cutter Cutting Machine Advantages

Paper cutting length, 1350(mm);
Paper cutting thickness, 3-5mm;
Clamping method, automatic chuck;
Cutting method, paper tube rotation;
Cutting knife mode, servo feeding pneumatic;
Speed control, frequency converter speed regulation;
Paper cutting pipe diameter, Φ30-55mm  Φ55-80 Fixed-size;
Upper pipe/inclined pipe mode, inclined frame rolling automatic;
Handling of head and tail materials, automatic separate stacking;

Paper Tube Fine Cutting Machine Technical Parameter

Paper Tube Cutting Machine Features

1. With the structure of clamping the blade with the lock sleeve, it is very simple to debug the cutter. The minimum cutting length can reach 50MM;

2. The core shaft of the paper tube adopts the tapered sleeve positioning and locking mechanism, and the replacement of the mold does not need to be adjusted, which is simple and reliable;

3. Faster. Cutting small paper tubes and thin wallpaper tubes can be cut up to 8-9 times per minute for parent tubes with a length of 1350MM; the practical range is wider, and the diameter of the tube is Ø30–55MM,55-80MM, custom size available;

4. JYDJQ-305585 Automatic multi-knife three-axis high-speed paper tube cutting machine main electronic control components are all imported brands. The manufacturing process and risk safety are fully implemented in accordance with the European standard CE standard;
