Fully Automatic Paper Core Cutting Machine With Multi-Knife

JYDJQ-76152L fully automatic paper core cutting machine is suitable for the inner diameter of paper tube¢76-152mm; the thickness of the paper tube is 3-15mm; cut the pipe length:90-2700mm, the paper core cutter blade is an alloy blade or an ordinary blade (choose one of the two), with fast cutting speed, smooth incision end face, accurate cutting size, and other functions.

  Description

JYDJQ-76152L fully automatic paper core cutting machine is suitable for the inner diameter of paper tube¢76-152mm; the thickness of the paper tube is 3-15mm; cut the pipe length:90-2700mm, the paper core cutter blade is an alloy blade or an ordinary blade (choose one of the two), with fast cutting speed, smooth incision end face, accurate cutting size, and other functions.

automatic paper core cutting machine

Paper Core Cutting Machine Advantages



1. The cutting length of the paper tube is 120-2700mm;

2. The host motor has strong power and stable operation;

3. The size adjustment of the paper core cutter is done manually by the machine, which is convenient and easy to operate;

4. PLC control system. The system has fast response speed, accurate data processing, good stability, and strong anti-interference ability;

5. Multi-knife pneumatic tube cutting, 120-2700mm paper tube cutting speed is fast, compared with single-knife, it saves the moving time of the cutting table;

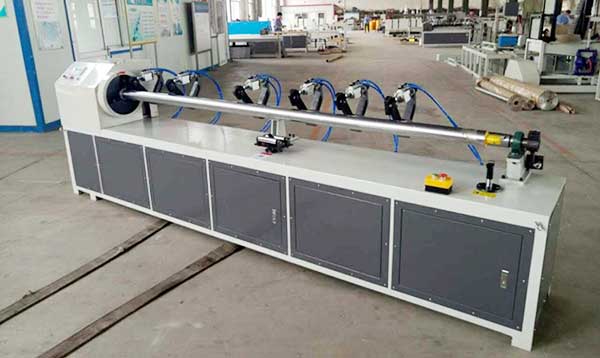

paper core cutting machine

Automatic Paper Core Cutting Machine Parameter



Technical parameter
Paper tube diameter Φ76-152(mm)
The thickness of the tube 3-15(mm)
Cut the pipe length 90-2700(mm)
The number of sets of cuttknifeinfe 6 set (standard )

Paper Core Cutter Machine Features



1. The claw tube is three-claw double-edged, the claw tube is more robust, and it is not easy to drop the tube;

2. The bracket at the end of the paper tube shaft adopts triangular pneumatic control to make the paper tube shaft more stable;

3. The claw tube controller is a bearing integrated device, which replaces the traditional copper block toggle, has no wear, and is more durable;

4. The protective cover at a pinch makes the operation safer, and the buffer function of the last section of the cutting table makes the machine more humane;

5. When the JYDJQ-76152L fully automatic paper core cutting machine drives the paper tube to rotate, the paper tube axis and the alloy blade are fixed. This feature prolongs the service life of the paper tube shaft and blade;
