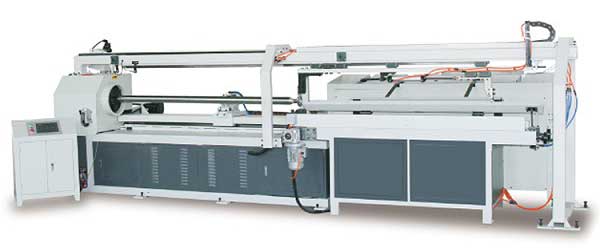

We support the JYDJQ-7685A automatic paper tube cutting machine, it is suitable for finely cutting the paper tube with inner dia of 76-85mm, thickness of 3-15mm and length of 2o00mm.
We are professionals paper tube cutting machine manufacturers in china! We support the JYDJQ-7685A automatic paper tube cutting machine, it is suitable for finely cutting the paper tube with inner dia of 76-85mm, thickness of 3-15mm and length of 2o00mm.It is applied to segmental cutting of various high-grade paper tubes, such as cutting chemical fiber paper tubes, OPP film tubes, tape paper tubes, etc.
1. Automatic loading and unloading;
2. Automatic servo tracking cutting;
3. Adjust the cutting length of the paper tube digitally;
4. JYDJQ-7685A automatic single knife CNC cutting machine is suitable for fine-cutting paper tubes with an inner diameter of 76-85mm, a thickness of 3-15mm, and a length of 2000mm. (can be customized according to actual needs)
|Paper tube diameter||Φ76-85mm|
|The thickness of the tube||3-15mm|
|Cut the pipe tube||20-2000mm|
|The number of sets of cutting knife||one groups (standard)|
1. The spindle speed adopts frequency conversion speed regulation;
2. PLC control, large-screen color touch screen man-machine operation;
3. Induction cutter, the cutter will exit automatically when it touches the cutting shaft;
4. Fully automatic production operation, automatic fault diagnosis and early warning;
5. The large-diameter slewing bearing is used to fix the mold, and the servo motor is quickly changed;
6. Adopt servo system positioning, high-precision ball screw drive, cutting resolution can reach 0.01mm;
7. It is suitable for the production and cutting of paper tubes with large batches and short cutting lengths or frequently changing cutting lengths;
8. 3-station control, 1 axis is used for cutting action, and the other 2 axes are used for loading and unloading work at the same time. Compared with the single-axis cutting machine, it can increase the work efficiency by nearly two times;
