Description

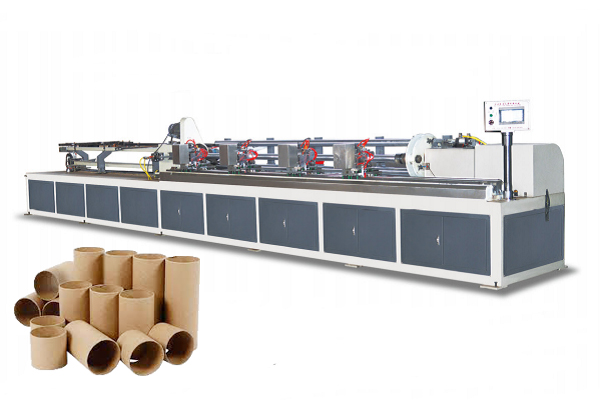

JYDJQ-7685C precision paper cutter cutting machine is specially used for fine cutting paper tubes, with high precision and high efficiency. This CNC three-axis automatic fine cutting is divided into single-knife and multi-knife. The shortest single knife can cut 10mm/piece, and the shortest limit of multi-knife is 200mm/piece. Compared with ordinary pipe-cutting machines, this machine has higher efficiency, more accurate precision, flat-end surface, labor saving, and higher automation.

Paper Tube Fine Cutting Machine Features

Cutting thickness, 3-15MM;
Cutting pipe diameter; 50-152mm;
Clamping method, automatic chuck;
Tube loading/unloading mode, automatic;
Paper tube cutting mode, paper tube rotation;
Adjustment control, frequency conversion control;
Cutting length (optional), 2.2m, 2.6m, 3m, 3.5m, 4m optional;

Automatic Paper Tube Cutting Machine Technical Parameter

JYDJQ-7685C Automatic Paper Fine Cutting Machine Main Function

1. PLC control, I/O monitoring, automatic alarm, fault prompt, and easy maintenance;

2. It is mainly used to cut the paper tube twice accurately to meet the customer’s requirements;

3. This machine works with three axes (three stations) at the same time, and the tube loading, tube cutting, and tube unloading stations are completed at the same time, realizing high-efficiency automation;

4. The production operation is fully digitalized, the product specifications are input into the touch screen in batches, the production quantity is monitored, and the machine stops automatically after completion;

5. JYDJQ-7685C Automatic paper fine cutting machine can be connected with the paper tube polishing machine and the paper tube grinding machine for simultaneous use. It can be connected to a paper tube for polishing, tube cutting, and grinding head integration;
