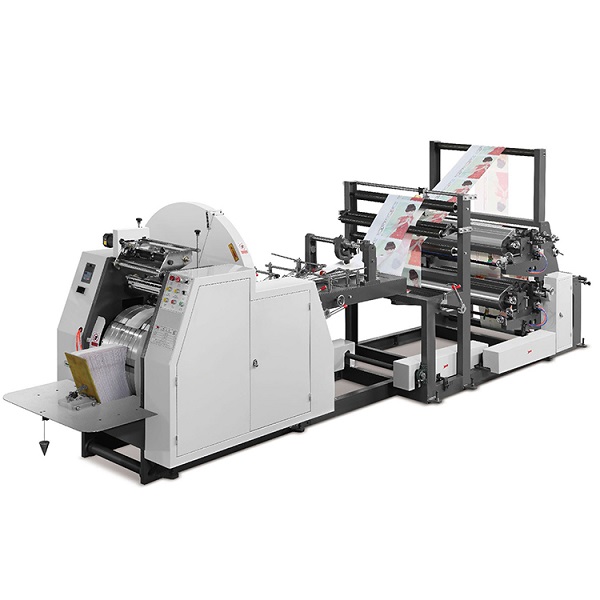

400/650/850 Mechanical paper bag machine with printing online

  Description

JYS400/650/850 Mechanical paper bag machine with printing online, Remark: 2 colors/4 colors/6 colors

Main Technical Parameter JYS400/650/850 Mechanical paper bag machine with printing online

Model JYS400 JYS650 JYS850
Bag Weight 40-80 gsm 40-80 gsm 40-80 gsm
Tube Length 160-450 mm 200-650 mm 200-850 mm
Bag Width 80-250 mm 80-300 mm 80-350 mm
Speed 100-400 bags/min 100-400 bags/min 100-400 bags/min
Weight 2200kg 2400 kg 2600 kg
Max Paper Roll Width 800 mm 900 mm 1000 mm
Power 4kw 4kw 4kw
Insert Size 20-120 mm 20-120 mm 20-120 mm
Machine Size(L*W*H) 6280*1500*1800 mm 6300*1600*1900 mm 6500*1700*1900 mm



 Model YT-800 YT-1000 YT-1100
Max Width Substrate 800 mm 1000 mm 1100 mm
Max Printing Width 760 mm 960 mm 1060 mm
Range Of Printing Length 228-1000 mm 228-1000 mm 228-1000 mm
Printing Speed 5-100 m/min 5-100 m/min 5-100 m/min
Register Precision ≤ ±0.20 mm ≤ ±0.20 mm ≤ ±0.20 mm
Plate Thickness 2.28 mm 2.28 mm 2.28 mm
Machine Size(L*W*H) 2000*2000*2300 mm 2000*2200*2300 mm 2000*2400*2300 mm
