ZDJ-1000 Hydraulic station high-speed paper plate forming machine, in the packaging machinery industry, the forming machine series products mainly include: carton forming machines and carton forming machines. Among them, the carton-forming machine and carton-forming machine are indispensable equipment for making cartons. At present, there are mainly two kinds of carton-forming machines with hot melt adhesive machines and carton-forming machines without hot melt adhesive machines on the market. The carton forming machine with hot melt adhesive machine is the equipment for making high-end high-quality world-covered cartons.

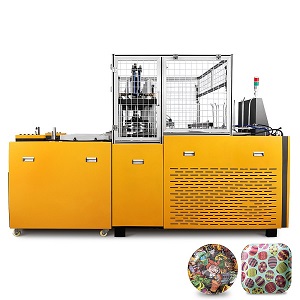

ZDJ-1000 Hydraulic station high-speed paper plate forming machine is designed and produced according to the specific needs of customers. It is mainly used to produce paper plates and paper trays with large sizes and extra-thick paper as raw materials. This model is based on the customer’s specific paper plate size and paper thickness to design the size of the machine and select the pressure of the hydraulic cylinder. The machine shown in the picture above is a 15-ton hydraulic cylinder extra-large paper plate machine, which is used to produce paper plates and paper plates with a paper thickness of 500-2000 g/m2.

Main technical parameters of the paper plate forming machine

Paper plate specification: 12 inches (mold can be replaced); paper material: according to customer needs (base paper, whiteboard paper, white cardboard, aluminum foil laminated to paper, or others); production speed: 1225 pieces/minute (only 1 station ); Power requirements: 380V 50Hz; Total power: 6 KW; Machine weight: 1000 KG; Dimensions: (length x width x height) 2500 x 850 x 1800 mm Supporting air source requirements: working pressure 4.8MPa, working air volume 0.5 cubic m/min;

Main features of the paper plate forming machine

1. ZDJ-1000 Hydraulic station high-speed paper plate forming machine has a new design and combination of pneumatic and mechanical actions, eliminating the shortcomings of slow speed and unstable performance of low-speed equipment, safe operation, and convenient maintenance;
2. Adopt the most efficient booster cylinder, which is faster, more stable, and more environmentally friendly than oil pressure;
3. High production efficiency, the speed can reach 75-90 pcs/min.
