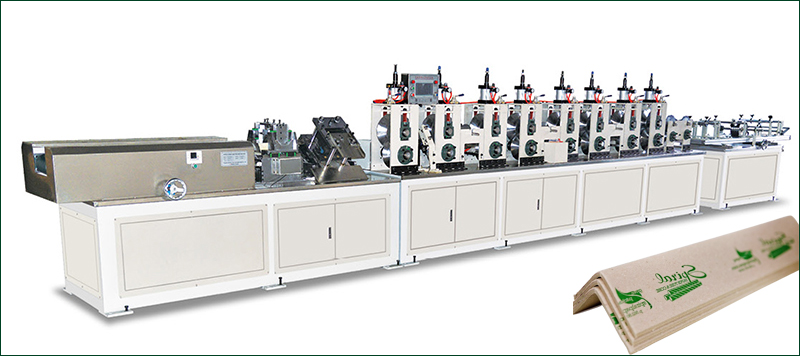

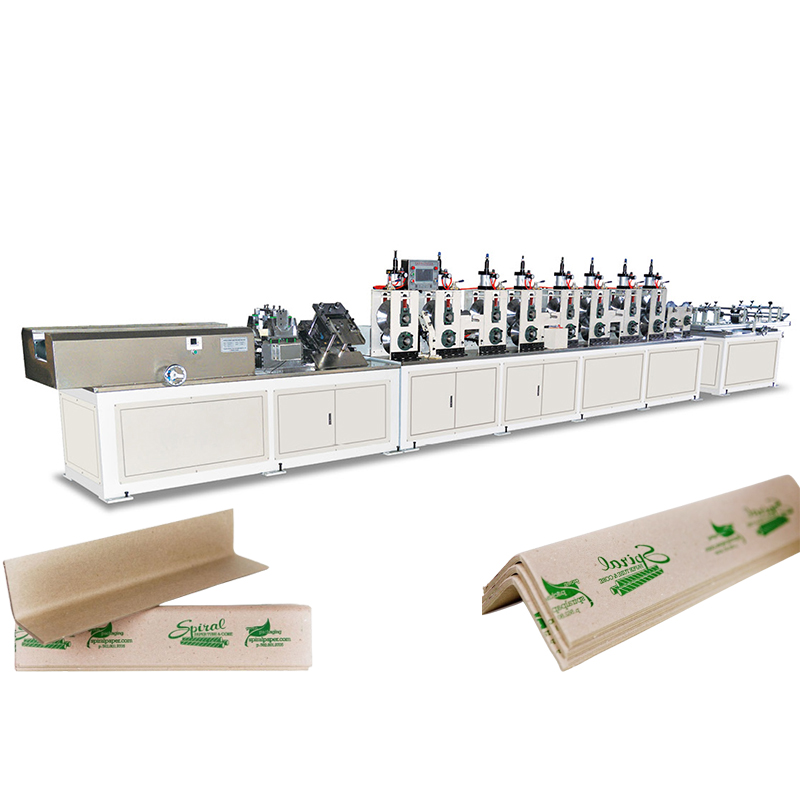

Description

The paper edge protector machine is also called the paper angle protector machine. It glues multiple layers of kraft paper together to make cardboard, and then presses the cardboard into an L-shaped or V-shaped paper edge protector. Our paper edge protector can be configured with printing functions according to customer needs, helping customers print company logos, etc. on the paper angle protectors, which can also have a certain publicity effect while packaging.

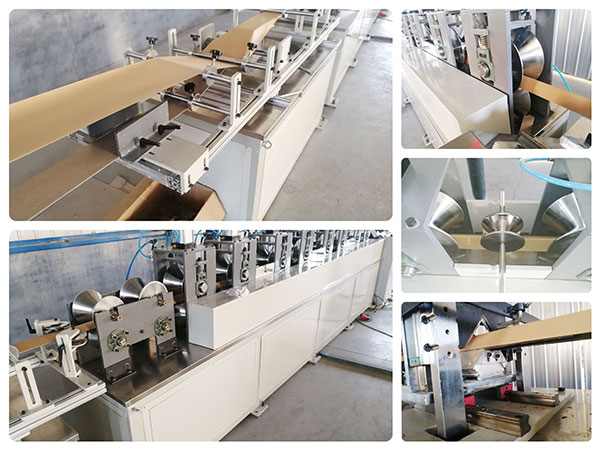

The paper edge protector machine working principle  is: the raw paper is unrolled through the paper loading frame, passed through the glue frame and applied with glue, then enters the edge wrapping mechanism and then enters the pressure wheel group for strong rolling. Finally, the finished product is cut off by the synchronous hydraulic cutting table.

Here is the paper angle protector machine youtube video working process in our factroy for your reference!!

Cardboard Paper Edge Protector Machine Parameter

Paper Angle Protector Machine Application

As an important packaging material, cardboard edge protectors are widely used in various industries, such as logistics, electronics, furniture, etc.

Paper Angle Protector Machine Features

1. The cutting length of the paper angle protector is accurate and can be controlled within 2000MM plus or minus 2MM, reducing the waste of raw materials and saving production costs;

2. The paper angle protector machine can produce special paper edge protectors with steel plates sandwiched in the middle. The product can also be coated with moisture-proof varnish on this equipment;

3. The paper angle protector machine is fast: high production efficiency, 12 sets of forming pressure wheels, 4KW main motor, frequency conversion speed regulation, the length of the main machine is 7 meters, the production speed can reach 70 meters per minute, and the paper corner protector is stable in molding and angle Can be controlled between 87 and 90 degrees;

4. The paper angle protector has a high yield rate. Because this paper angle protector machine adopts a uniquely designed air pressure system, an electrically operated paper feeding and wrapping mechanism, and a power gluing system synchronized with the host machine, the glue is applied evenly and the wrapping is smoother. Beautiful, the tissue paper is not easy to break, and the product is harder;

5. The paper edge protector  machine has a wide production range: the diameter of the press wheel is up to 240MM, precision manufacturing, high-frequency heat treatment on the surface and high-strength hard chromium plating. The maximum width of the paper corner protectors is 110MM*110MM, the minimum width is 25MM*25MM, and the thickness is 2MM-9MM. The facial paper can be fully or half-wrapped. It is more unique for the production of unequal edge paper corner guards;

Our cardboard edge protector machines are ideal for production lines of all sizes, whether a large factory or a small workshop. It not only improves production efficiency, but also reduces labor costs and waste generation. This will help make your production line more competitive and bring you more profits.If you also interested in this edge protector machine, welcoem to contact us freely to get more details and 100% free quotations online!!
