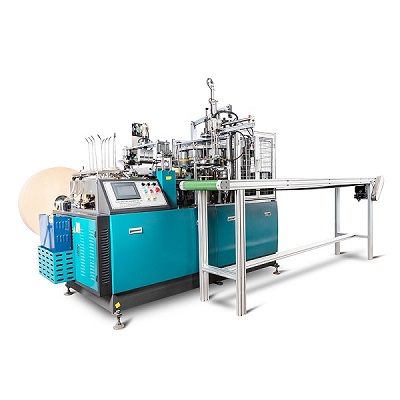

MY-W35 automatic paper bowl forming machine is developed according to domestic specific conditions, through automatic paper feeding (printed fan-shaped paper), secondary preheating, sealing (bowel wall), oiling (lubricating the roll mouth), Bottom punching (automatic punching of the bottom of the bowl from the web), secondary bottom heating, knurling (sealing of the bottom of the bowl), edge curling (rolling on the top), roll watering line, collection of unloading bowls and other continuous processes, as well as Photoelectric detection, fault alarm, counting and other functions, it is an ideal equipment for producing large-capacity and large-diameter bowl-shaped containers such as paper soup bowls, instant noodle bowls, and takeaway paper bowls.

MY-W35 automatic paper bowl forming machine is mainly used to produce “single PE coated” disposable paper bowls. This machine is easy to operate (one person), stable in performance, occupies less land, and has high efficiency. It is a project for investment and entrepreneurship.

MY-W35 automatic paper bowl forming machine is developed on the basis of fully absorbing the latest Korean paper bowl forming machine according to domestic specific conditions. It has automatic paper feeding, secondary preheating, sealing, oil filling, bottom flushing, and secondary bottom Heating, knurling, crimping, rolling water filling line, bowl unloading, photoelectric detection, fault alarm, counting, and other functions, it is an ideal production equipment for large-capacity and large-caliber containers such as soup bowls and instant noodle bowls.

The demand of the market is large, and adapting to the needs of social development, paper containers will definitely ban plastic paper cups. The single-sided coated paper bowl machine is small in size, occupies a small area, consumes less power, has low labor intensity, is easy to operate, and requires less capital and less risk for investment. It is very suitable for family investment and creation.

Technical points of MY-W35 automatic paper bowl forming machine

1. Stepless frequency conversion speed regulation: Stepless frequency conversion speed regulation is adopted, so that the production speed of the paper bowl machine can be adjusted conveniently and easily.
2. Photoelectric monitoring: automatic fault alarm and counting.
3. Design and manufacture molds according to customer requirements. Paper cups of various specifications and sizes can be produced by exchanging molds, realizing multiple products in one machine.
4. Automatically process the printed fan-shaped paper (the expanded shape of the cup) into a paper bowl shape.
5. Use an ultrasonic system to bond the bowel wall of the paper bowl.
6. The bottom of the paper bowl uses roll paper, which is automatically fed and punched.
7. Bonding of bowl body and bottom: hot air blowing and bonding.
8. Knurling: When the bottom of the paper bowl is glued, a layer of impression is rolled on it through mechanical movement.
9. Curling: The curling of the mouth of the paper bowl is formed.
