Description

The round paper barrel production line integrates multiple processes such as paper loading, winding, cutting, rib pressing, and bottom sealing. The equipment has stable operation, easy operation, and high production efficiency. It is suitable for batch production of packaging barrels in the chemical, food, and pharmaceutical industries. The entire line adopts a modular design and can be customized according to customer needs. It has the advantages of environmental protection, energy saving, and beautiful finished products. It is an ideal choice for modern paper barrel production.

The entire production line includes the following equipment：

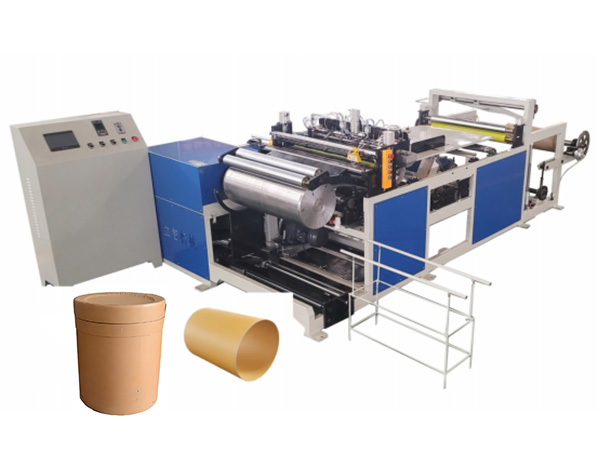

1.Automatic barrel rolling machine

This machine can be used to roll round and square paper barrels. You only need to change the mold. There are two types: with automatic veneer and without veneer. The specifications are 820 and 1100, which can be customized according to actual production needs. The whole machine consists of a paper rack, a paper separation knife rack, a gluing device, a barrel rolling device, a paper cutting device, a barrel unwinding device, and a barrel receiving device. The paper shafts are all inflatable shafts, and the paper racks are automatically raised and lowered. PLC and inverter control, CNC adjustment.

Integral barrel rolling machine, the material rack and the machine are integrated, easy to operate, small footprint, and used for customized height paper rolling. Split barrel rolling machine, the paper rack is movable, with a slitting knife rack, suitable for wide paper, and has strong versatility.

Parameter

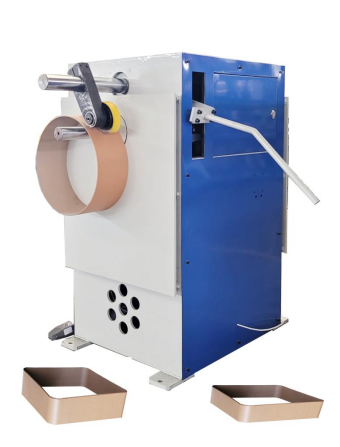

2.Pneumatic cutting machine

Both round barrels and square barrels can be cut, different specifications can be switched directly, with frequency converter, cutting speed is adjustable.

Parameter

3.Automatic creasing and folding machine

(1)The indentation process and the folding process are combined into one, reducing labor and floor space

(2)The same machine can be used to make barrel covers and barrel bodies

(3)Computer control, automatic counting, manual and automatic modes, convenient and safe operation

(4)The workbench rotation mode, the servo motor rotation efficiency is higher

Parameter

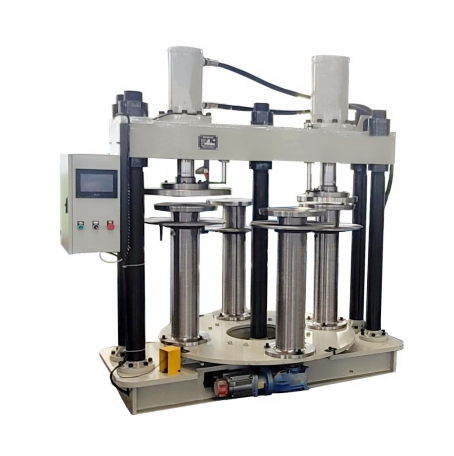

4.Press machine

4-station press

The worktable moves smoothly, servo motor control, precise positioning.

Computer control, adjustable holding time, automatic counting, manual and automatic modes, convenient and safe operation

Parameter

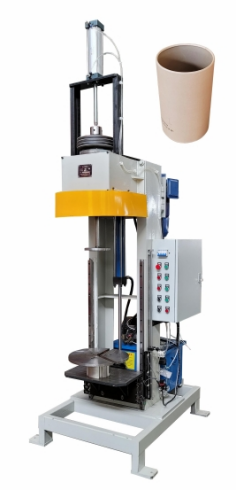

5.Barrel curling machine

1)The mouth of the processed product is smooth, scratch-free, and the insulation is dense.

2)The pneumatic chuck is used for automatic clamping and vertical clamping of the paper barrel to ensure that the paper barrel enters the mold vertically and reduce the scrap rate.

3)Computer control, convenient and safe operation.

Parameter

6.Automatic hoop pressing machine

1)Full paper barrel ferrule equipment, automatic glue spraying, pneumatic ferrule pressing, automatic lifting and height adjustment.

2)Computer control, convenient and safe operation.

Parameter

Drawing
