Automatic Square Bottom Paper Bag Making Machine 290/330/460

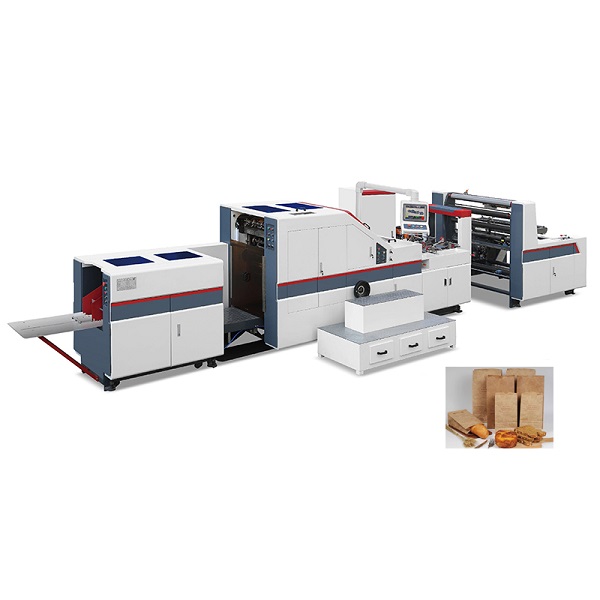

ZXFD-290/330/460 Automatic roll to square bottom paper bag making machine, has the advantages of high speed, high production efficiency, and wide adjustment range. It is designed to manufacture square bottom paper bags from paper rolls in blank or printed and can complete side gluing, tube forming, cutting, bottom impressing, bottom gluing, bottom forming, and final product output within one time.


ZXFD-290/330/460 Automatic Square Bottom Paper Bag Making Machine is a kind of equipment for producing square bottom paper bags. The square bottom paper bag machine is controlled by a PLC system, equipped with a touch screen and servo motor to control the bag length, and can efficiently produce high-quality square bottom paper bags of various specifications. The resulting square-bottom paper bag is a common packaging material widely used in the retail and food industries.


Paper Bag-Making Machine Advantages

First, it automates the entire production process, including the steps of cutting, folding, gluing, and forming paper.

Secondly, the machine is capable of high-speed production and can produce a large number of square-bottom paper bags in a short time.

In addition, the machine can also be customized according to the needs of customers to produce square-bottom paper bags of different specifications and sizes.

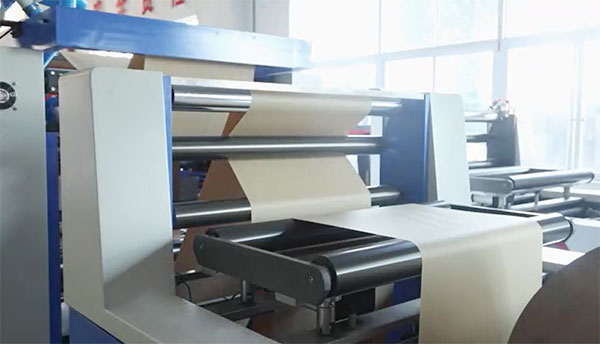

paper bag making machine

Square Bottom Paper Bag-Making Machine Features

1. Side gluing uses Italy ZATOR;

2. Automatic stop for having no material;

3. Automatic error correction uses Italy SELECTRA;

4. Paper tube forming device with thumb-cut function;

5. Equipped with an automatic lubrication supply system ;

6. Use hydraulic lifting for material handling and an automatic tension control system for unwinding;

7. Center clip, drum wheel clamp, and drum wheel mechanical design, which can significantly reduce the adjustment time for replacing size;

8. ZXFD-290/330/460 Automatic roll to square bottom paper bag-making machine uses the German KEB servo with the SICK photoelectric eye, which can accurately track the printed material;

Here is the square-bottom paper bag-making machine with 2 color printing youtube video working process in our factory for your reference!!

 ZXFD-290/330/460 Automatic Paper Bag-Making Machine Parameter

Model ZXFD-290 ZXFD-330 ZXFD-460
Bag Length 260-533 mm 260-533 mm 260-533 mm
Bag Width 120-290 mm 140-330 mm 220-460 mm
Bottom Size 60-180 mm 60-180 mm 60-180 mm
Paper Thickness 60-150 gsm 60-150 gsm 60-150 gsm
Maximum Roll Width 320-900 mm 320-900 mm 600-1300 mm
Max Paper Roll Diameter 1300 mm 1300 mm 1300 mm
Material Core Diameter 76 mm 76 mm 76 mm
Max Production Speed 200 pcs/min 200 pcs/min 180 pcs/min
Total Power 12kw 12kw 15kw
Machine Weight 8500kg 9000kg 10000kg
Machine Size(L*W*H) 9200*2500*1800 mm 9200*2600*1800 mm 9200*3000*1800 mm

paper bag making machine

In a word, the square-bottom paper bag-making machine is an important production equipment, which can efficiently produce high-quality square-bottom paper bags. The square bottom paper bag-making machine has a wide range of applications. It can produce various types of square-bottom paper bags, such as shopping bags, food bags, gift bags, and so on. These bags can be used to pack various commodities, such as food, clothing, cosmetics, etc. Its wide range of applications makes it have great demand in the market. The high efficiency and high quality of the square-bottom paper bag-making machine make it the preferred equipment for many enterprises.
