ZXFD-460 Square bottom paper bag machine is used for raw color paper or printing roll paper such as kraft paper. Paper rolls such as food paper are processed by this machine at one time.
Whatsapp：
+86 17838313979E-mail：

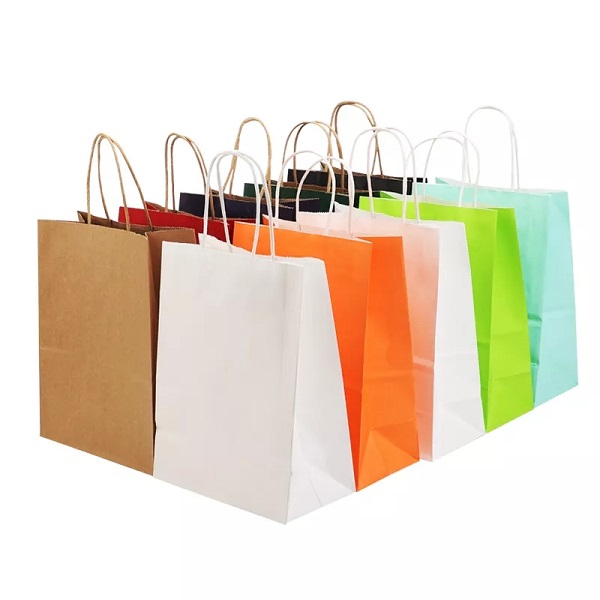

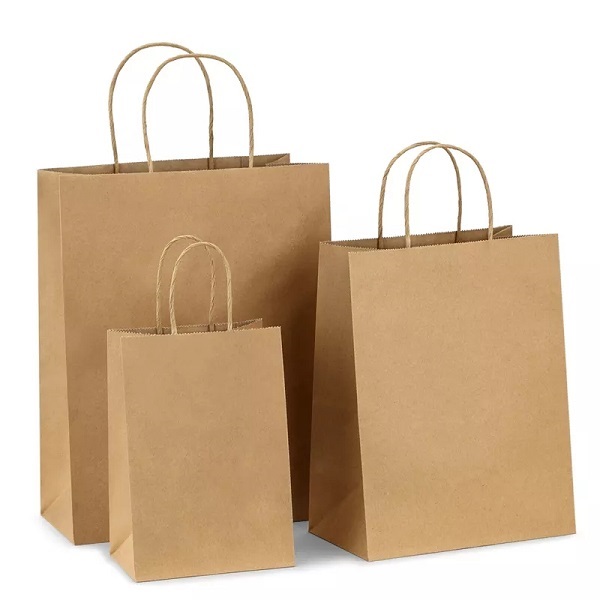

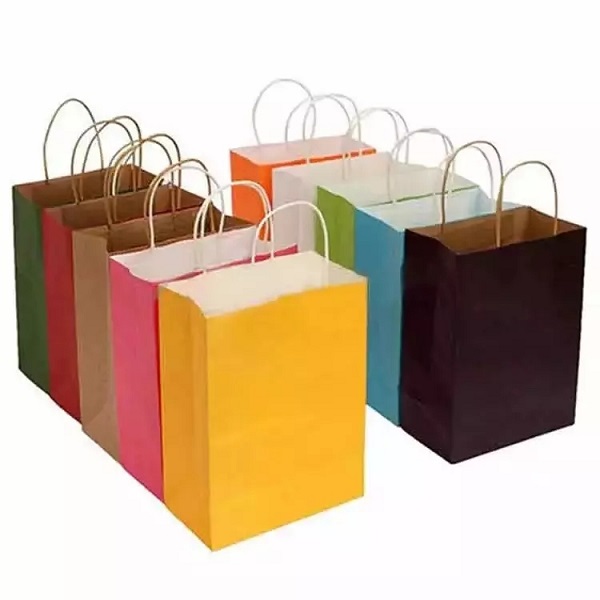

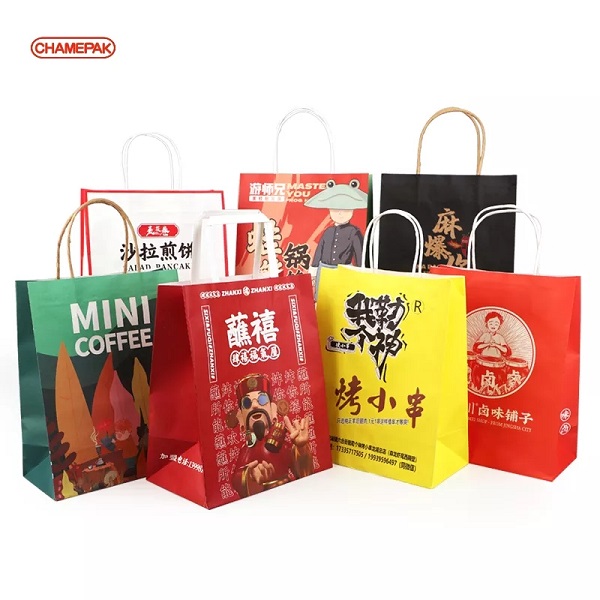

[email protected]Automatic center gluing, tube forming, cutting to length, bottom creasing, and bottom folding. The bottom is glued and the bottom of the bag is formed. The finishing of finished bags is completed once. This ZXFD-460 Square bottom paper bag machine is more convenient to operate, more efficient, and more stable. It is an environmentally friendly paper bag machine equipment for producing various paper bags, snack food bags, bread bags, dried fruit bags, etc.

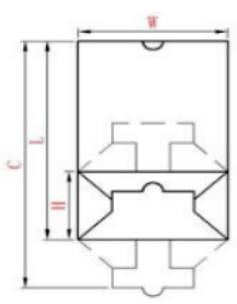

| MODEL | ZXFD-460 | REFERENCE PHOTO |
| TUBE CUTTING LENGTH | 260-533mm |
|
| PAPER BAG WIDTH W | 220-460mm | |
| BAG BOTTOM WIDTH | 60-180mm | |
| PAPER THICKNESS | 60-120g/m2 | |
| BAG MAKING SPEED | 30-180 pcs/min | |
| PAPER ROLL WIDTH | 320-600mm | |
| PAPER ROLL DIAM. | 1300mm | |
| Air pressure | 0.4mpa | |
| MACHINE POWER | 3phase 4line 380V, 19 kW | |
| MACHINE WEIGHT | 5000kg | |
| MACHINE DIMENSIONS | 11000×3000×1800mm |
| Overall dimension | L6000*W1600*H1500mm |
| Motor brand | Shanghaikuayue |
| Total power | 10KW，50HZ |
| Servo motor brand | Siemens |
| Servo motor power | 750W one group |
| PIC programming brand | Siemens |
| Hot melt machine brand | Xinbaishun |
| Mechanical arm | HIWIN or DELTA |
| Handle Spacing | 75mm |
| Paper Rope Height | 105mm |
| Paper Width | 36mm |
| Paper Length | 125mm |
| Paper Gram Weight | 110-120g/㎡ |
| Bag width | 120-290mm |
| Bag height | 260-533mm |
| Top opening size over 130mm | (Bag Width minus the width of folding ) |
| Production speed | 30-35pcs/min |
