First-class paper processing equipment — Automatic high-speed slitting rewinding machine

2023.02.15

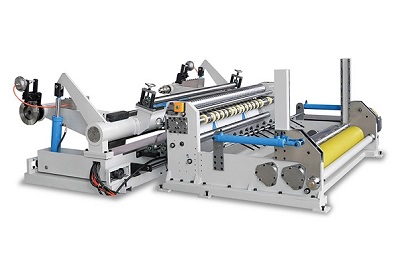

JYDFQ-1600B Automatic high-speed slitting rewinding machine has reliable quality and is more convenient in the process of adjusting the size. By coiling on the center of the surface, it is found that the quality will be more stable. Because the equipment has achieved the era of mechanical automation, of course, it will still have the advantages of higher quality and high technical content in the process of application. In the stage of promotion and application in paper mills, the advantages and performance advantages of the JYDFQ-1600B Automatic high-speed slitting rewinding machine will be found. In most paper mills in the country, the sales volume will continue to increase. It is found that the process and cutting technology are very outstanding and have reached a first-class technical level.

Solutions for malfunctioning JYDFQ-1600B Automatic high-speed slitting rewinding machine

JYDFQ-1600B Automatic high-speed slitting rewinding machine when cutting paper, there will be a series of situations such as the paper is not cut off. Don’t panic, observe the problem carefully and find the corresponding solution. The rewinding paper manufacturer will introduce the rewinding and slitting machine to you. Solutions for not working properly when cutting paper.

1. JYDFQ-1600B Automatic high-speed slitting rewinding machine the two paper rolls are connected together, and the paper is not cut, which is a small fault that often occurs. If this problem occurs, first check whether the paper cutter blade is in good condition. Check whether the paper cutter sticks to the knife after the knife is applied. When checking, first move the paper cutter to a position where there is no knife, and then check it on the knife. If the blade does not stick to the knife after the knife is applied, remove the back of the paper cutter. Small cover, replace the upper knife airbag.

2. JYDFQ-1600B Automatic high-speed slitting rewinding machine when the paper slitter rewinder machine is not in place, first check whether the instrument limit is normal, then check the paper slitter gearbox, whether the oil level is too low and the rise is not enough, check the three rows of the paper slitter Chain, is the chain stretched too much, causing the two sides to rise inconsistently, if the chain is too long, you need to remove a section.

3.JYDFQ-1600B Automatic high-speed slitting rewinding machine when the cutter rest is attached to the roller during the ascent of the paper cutter, first check whether the cylinders on both sides of the cutter are working normally during the ascent. If one of the cylinders does not move, the cutter rest will be attached To the roller surface, the cylinder needs to be replaced at this time; if there is no fault in the cylinder, then adjust the fixing bolts of the knife holder, and when adjusting, go to the bottom of the rewinder to make the paper breaker operate normally.

4.JYDFQ-1600B Automatic high-speed slitting rewinding machine when the manual rotation of the paper cutter blade is too large, remove the paper cutter head and replace the upper circular cutter shaft.

The above content is organized and introduced by Zhengzhou JYD Machine Co., Ltd. for us. If you need it, please contact our company. The price of the JYDFQ-1600B Automatic high-speed slitting rewinding machine can also be inquired.
