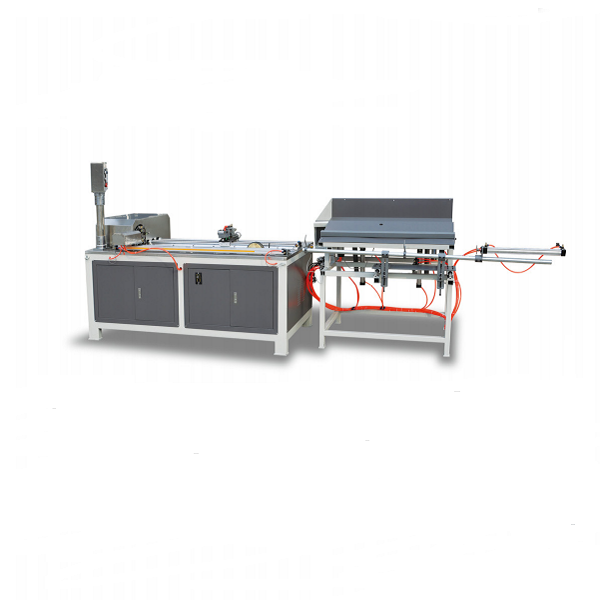

JYDJQ-2050 Automatic paper tube cutting machine automatic loading and unloading; servo tracking cutting; suitable for precision cutting of paper tubes with an inner diameter of 20-50mm, a thickness of 1-3mm, and a length of 1250mm. (a standard set of knives)
JYDJQ-2050 Automatic paper tube cutting machine with automatic loading and unloading system saving labor cost; servo tracking cutting; suitable for precision cutting of paper tubes with an inner diameter of 20-50mm, a thickness of 1-3mm, and a length of 1250mm. (a standard set of knives)
Convenient and quick, easy to operate, and easy to use;
Wide range of use, suitable for various occasions, high-cost performance;
CNC precision cutting without error, the length of the cutting section can be adjusted, and the effect is good;
|The inner diameter of the paper tube||Φ20-50（mm)|
|Paper tube thickness||1-3（mm)|
|Cut pipe length||10-1250（mm)|
|Number of cutter groups||1 set (standard )|
Here is the automatic paper tube cutting machine youtube video working process in our factory for your reference!!
1. PLC control, I/O monitoring, automatic alarm, fault prompt, easy maintenance;
2. It is mainly used for secondary fine cutting of paper tubes to meet customer requirements;
3. The three axes (three stations) of the machine work at the same time, and the tube loading, tube cutting, and tube unloading stations are completed at the same time, realizing high-efficiency automation;
4. The production operation is completely digitized, the product specifications are input into the touch screen in batches, the production quantity is monitored, and the machine stops automatically after completion;
5. JYDJQ-2050 automatic CNC small tube cutting machine can be used together with the paper tube polishing machine and can be used simultaneously with the paper tube grinding machine. It can be connected to the paper tube for polishing, tube cutting, and grinding head integration;
If you do not have the automatic request for this paper tube-cutting machine, We also have a semi-automatic paper tube-cutting machine, which can also meet your needs for cutting the small dia paper tube. It needs to be equipped with 1 worker for manual tube loading.
If you need our products please write down any questions, we will reply as soon as possible.
