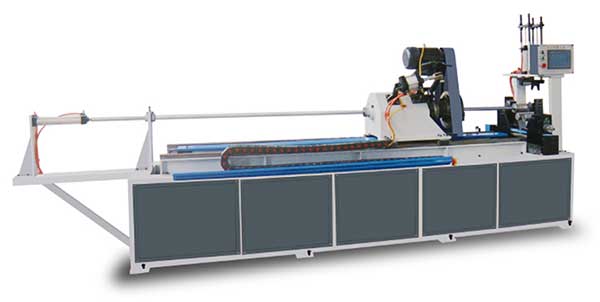

JYDJQ-W40400 semi atuoamtic shaftless paper tube fine cutting machine is suitable for fine cutting of paper tubes with inner diameter of 76-152mm, thickness of 3-15mm and length of 2000mm. (can be customized according to actual needs).
JYDJQ-W40400 semi atuoamtic shaftless paper tube fine cutting machine need worker manual input the paper tube into the mold. It is suitable for fine cutting of paper tubes with inner diameter of 76-152mm, thickness of 3-15mm and length of 2000mm. (can be customized according to actual needs).
1. Fully automatic servo tracking cutting;
2. Digitally adjust the cutting length of the paper tube;
3. Manually assisted on the tube, automatically down the tube;
|Inner diameter of paper tube||Ø40-420mm|
|Paper tube thickness||1.2-15mm|
|Number of cutter groups||1 group|
|Working air pressure||0.6Mpa|
|Motor power||Main motor 3.0kw/ servo motor 3.0kw+1.5kw|
|Number of operators||1|
Here is the paper tube cutting machine youtube video working process in our factory for your reference!!
1. Servo feed control cutter, fast speed and high precision;
2. Suitable for cutting paper tubes with an inner diameter of 76-152mm and a thickness of 3-15mm;
3. The paper tube cutting method does not require the axis of the paper tube mold, but only one chuck and one cutting head;
4. This shaftless paper tube cutting machine is suitable for secondary processing of paper tubes and fine cutting of paper tubes;
5. The fully automatic model can be automatically sent to the paper tube grinding machine for grinding after cutting the paper tube;
6. There are two types of machine configurations: fully automatic and semi-automatic, which can be customized according to customer needs;
If you have the fully automatic request of the paper tube cutting process, we also have automatic shaftless paper tube cutting machine , and the fully automatic shaftless paper tube cutting machine have more cutting length(Except the 2000mm, also have 2500mm,3200mm ) for your choice!!
