Home » Products » Paper tube cutting machine » High Speed Shaftless Paper Tube Fine Cutting Machine Automatic

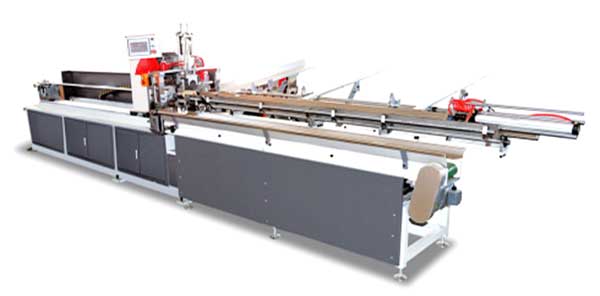

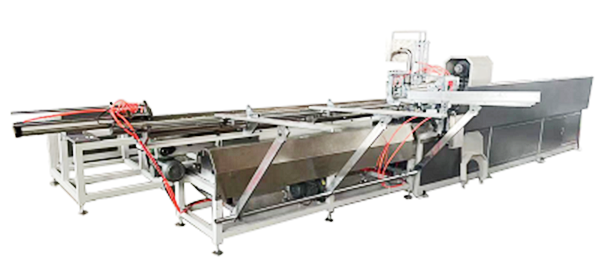

JYDJQ-W76152B Automatic shaftless fine cutting machine is suitable for fine cutting of paper tubes with inner diameter of 76-152mm and thickness of 3-15mm. (The length is 2000, 2500, 3200mm to choose from.)
Whatsapp：
+86 17838313979E-mail：
[email protected]The automatic shaftless fine cutting machine is suitable for paper tubes with an inner diameter of 76-152mm and a thickness of 3-15mm. (The length is available in 2000, 2500, 3200mm.)
1. Fast speed, saving time and effort;
2. Pneumatic cutting with small error;
3. Simple, easy to operate and low price;
Here is the automatic shaftless paper tube cutting machine youtube video working process in our factory for your reference!!
| Technical parameter | |
| The inner diameter of the paper tube | Φ76-152（mm) |
| Paper tube thickness | 3-15（mm) |
| Cutting length | 20-3200（mm) |
| Number of cutter groups | 1 set (standard ) |
| Working air pressure | 0.6Mpa |
| Control method | CNC |
| Motor power | 4.0+0.75*2+1.5+0.75=7.75KW |
| Number of operators | 1 |
1. Automatic loading and unloading;
2. Adjust the cutting length of the paper tube digitally;
3. Automatic shaftless fine cutting machine Automatic servo tracking cutting;
About the automatic shaftless paper tube core cutting machine, we also have semi automatic shaftless paper tube core cutting machine.We are professionals paper tube cutting machine manufacturer in China , either you need any of them ,we can support you with the factory price!!
If you need our products please write down any questions, we will reply as soon as possible.
