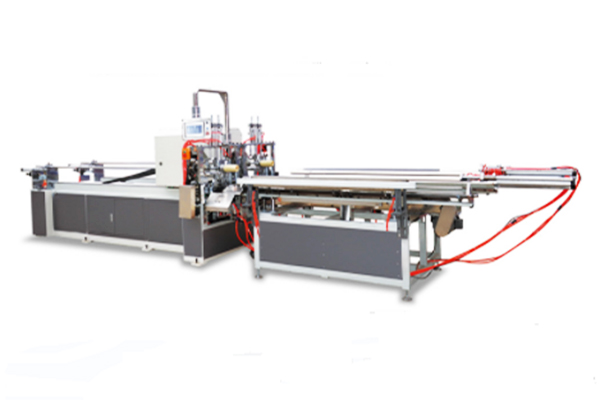

JYDJQ-W76152A double shaftless paper fine-cutting machine is an upgraded version of the shaftless paper fine-cutting machine, it is fully automatic. It does not need the axis of the paper tube to do the fine cutting of the mold, only the chuck and the cutting head, saving the cost of the mold for the customer.
JYDJQ-W76152A double shaftless paper fine-cutting machine is an upgraded version of the shaftless paper fine-cutting machine. It does not need the axis of the paper tube to do the fine cutting of the mold, only the chuck and the cutting head, saving the cost of the mold for the customer. Paper tubes of different specifications and sizes can be replaced, and the adjustment and debugging speed is fast. It is used for the fine cutting of shorter paper tubes with an inner diameter of 40-420mm, a thickness of 1.2-15mm, and a length of 5-2000mm (can be customized according to actual needs), which can fully meet Large-scale paper tube processing plants require high-efficiency paper tube precision cutting.
|The inner diameter of the paper tube||Ø40-420mm|
|Paper tube thickness||1.2-15mm|
|Number of cutter groups||1 group|
|Working air pressure||0.6Mpa|
|Motor power||Main motor 3.0kw/ servo motor 3.0kw+1.5kw|
|Number of operators||2|
1. Servo tracking cutting;
2. Automatic servo tracking cutting;
3. Double working stations at the same time automatic tube up and down, automatic fine cutting, higher efficiency;
4. JYDJQ-W76152A Automatic double shaftless paper fine cutting machine adjusts the cutting length of paper tube digitally;
We also have another type of shaftless paper tube fine-cutting machine with 1 operations station, if you don’t have too many paper tubes to cut, the shaftless paper tube fine-cutting machine can meet your paper core tube cutting request!!
If you need our products please write down any questions, we will reply as soon as possible.
