Main features of Automatic high-speed slitting rewinding machine

2023.02.08

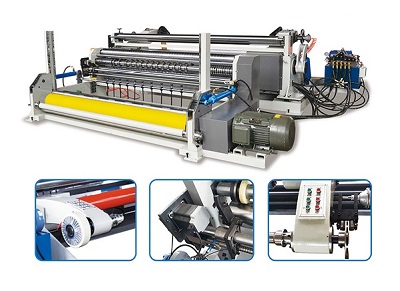

JYDFQ-2500D Automatic high-speed slitting rewinding machine, from single-layer rewinding, cut into double-layer, three-layer, or four-layer paper with different specifications for folding paper towels, napkins, boxed face towels, etc. The machine has good mechanical performance, compact and reasonable structure, full use of pneumatic devices, stable high-speed operation, easy operation, and firm winding.

The JYDFQ-2500D Automatic high-speed slitting rewinding machine is characterized in that it includes a frame, an unwinding roller, a cutting device, a tension roller, a winding roller, and a residual material recovery roller. The unwinding roller is rotated and installed at the head end of the frame, and the cutting device includes a tool mounting frame fixed in the middle of the frame, a cutting idler, two sets of slitting mechanisms, and two sets of edge trimming mechanisms. The tool mounting frame is provided with a horizontal lead screw, and the two ends of the horizontal lead screw pass through the support frame fixed on the frame. Operating the hand wheel, the cutting idler roll is installed in the front and bottom of the tool mounting frame. The slitting mechanism includes a slitting tool holder and a slitting tool. The slitting tool holder is fixedly connected with the nut sleeve set on the horizontal screw and passes through the waist-shaped abdication hole. The slide rail, the slide block mounted on the slide rail, the edge trimming tool holder, and the edge trimming tool are fixedly mounted on the slide block. The tension rollers are arranged in dislocation and are respectively installed in front of the cutting idler. The winding rollers include a first winding roller, a second winding roller, and a third winding roller. The first winding roller and the second winding roller The rotating roller is installed at the end of the frame, and the third rewinding roller is installed in the middle position of the first rewinding roller and the second rewinding roller and is located below the first rewinding roller and the second rewinding roller. Two recovery rollers are installed on both sides of the first winding roller and the second winding roller respectively rotating.

Main features of Automatic high-speed slitting rewinding machine

1. It is composed of a pneumatic paper feeding device, base paper conveying device, and rewinding and winding system device;
2. Pneumatic automatic paper feeding device, which can easily feed the base paper from the ground to the unwinding rack, saving labor and crane handling;
3. The JYDFQ-2500D Automatic high-speed slitting rewinding machine system can drive the original paper roll to rotate smoothly so that the unwinding speed and the rewinding speed are consistent, and the speed difference between the unwinding and the reeling paper can be adjusted;
4. The use of inflatable rolls is used for winding, which is convenient for threading the paper tube before rewinding and reeling the paper after rewinding.
