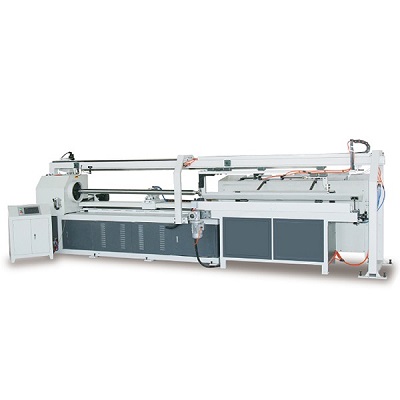

JYDJQ-7685A Automatic single knife CNC cutting machine adopts a unique suspended operation panel, which is more convenient. Using infrared to set the length, convenient and precise. Mechanical paper loading, reducing labor. Paper tape tension control system, the paper tape is compressed by the air cylinder, and the tension can be adjusted flexibly. Equipped with a glue tank and tension control system, single-sided or double-sided glue depends on the strength requirements of the paper tube. The flexible design of the flanged shaft with tapered mandrel.

JYDJQ-7685A Automatic single knife CNC cutting machine has a large adjustable range and is easy to operate. It is convenient to adjust the length of the paper tube, to ensure the length of the paper tube, and to use the same speed according to different paper tubes, so as to achieve the best effect. JYDJQ-7685A Automatic single knife CNC cutting machine is also used for many purposes. It can shape the finely cut paper tube into a paper tube curling with a smooth end surface and inner and outer fillet length. By changing the concave wheel, DTY flanging tube can be made on the machine. The adjustable mold can be rotated in reverse quickly, the two opposing forces are consistent, the adjustable range is large, and the operation is flexible and convenient. There is a locking thread on the shaft of the grinding head, which is convenient for adjusting the length of the paper tube. The machine adopts cam feeding to ensure the stability of the length of the paper tube.

Features of JYDJQ-7685A Automatic single knife CNC cutting machine

Color touch screen humanized design, easy to operate. The cutting time of the cutting pipe is only 0.5 seconds per knife. The circuit adopts Taiwan PLC programmable control with stable performance. With automatic closing, automatic clamping, automatic counting, and automatic stop function. JYDJQ-7685A Automatic single knife CNC cutting machine Fully automatic operation production, automatic fault diagnosis, and early warning to avoid damage to the machine. Adopt servo system positioning, Taiwan high-precision ball screw drive, cutting resolution is less than 0.01mm.

Main technical indicators of JYDJQ-7685A Automatic single knife CNC cutting machine

1. Cutting shape: Programmable cutting of any planar steel plate parts composed of straight lines and arcs;
2. Cutting accuracy: National standard JB/T10045.3-99;
3. Cutting width: 2.2m;
4. Track length: The standard configuration is 4 meters, and it can also be customized to lengthen 2m/section according to user requirements;
5. Cutting thickness: The flame can cut up to 200mm, and the plasma cutting thickness depends on the size of the selected power supply.
