Operating points of desktop-type paper can sealing machine

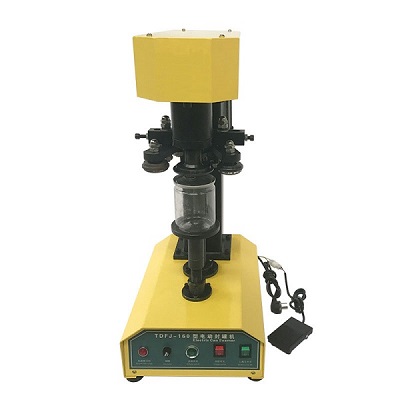

JYD-TDFJ160 Semi-automatic desktop-type paper can sealing machine Can seal all kinds of pop cans with good sealing quality. The equipment is simple and compact in structure, easy to operate and maintain, small in size, light in weight, and low in noise. Cans of large and small diameters can be sealed by replacing a few parts. It is widely used in the sealing of cans, paper cans, plastic cans, metal cans, and glass cans. It is ideal equipment for small and medium-sized beverage factories, cola, herbal tea, food factories, kimchi, canning factories, canning factories, chemical factories, medicines, and health care products.
Features description of desktop-type paper can sealing machine
1. JYD-TDFJ160 Semi-automatic desktop-type paper can sealing machine is a traditional can sealing machine produced by our company. It adopts the traditional can sealing principle, and the can body is rotated to seal;
2. Simple structure, convenient debugging, and maintenance, the machining precision of this machine is very high, and it is superior to similar domestic products in terms of appearance and sealing quality.
3. The electrical components adopt Chint low-voltage electrical appliances with excellent performance;
4. The lifting of the tank body is controlled by a mechanical cam, and the lifting is stable.
Technical description of desktop-type paper can sealing machine
1. Front and rear sealing wheels are sealed. The structure is simple and reasonable, and the adjustment is convenient.
2. The manual operation cooperates with the motor, and the cooperation between the pedal and the hand completes the sealing.
3. The wear-resistant parts are quenched with stainless steel and carbon steel, which have good wear resistance.
Performance characteristics of desktop-type paper can sealing machine
JYD-TDFJ160 Semi-automatic desktop-type paper can sealing machine can lid joint control device: when there is a can body entering, the can lid will be allocated accordingly, and if there is no can, there will be no lid. “Sealing without a lid”: When the can body without the can lid enters by mistake, it can pass through the seaming mechanism smoothly so that the can body will not bite the indenter and damage the parts of the seaming mechanism. The motor of the host machine and the conveyor belt are individually step-less speed-regulated, with simple structure and convenient operation and maintenance. The outer cover and main components are made of 304 stainless steel, which meets the hygienic requirements of food and medicine.
Operating points of desktop-type paper can sealing machine
1. Preparatory work before starting up:
(1) Check whether all parts are well lubricated.
⑵ Check whether the firmware is loose and whether the power cord is damaged.
⑶ Check the rotating system and motion mechanism for faults and abnormal sounds.
2. Debugging machine:
Press the electric switch to adjust slowly, and turn the lifting screw to adjust to the required height of the jar. When sealing the can, it can be completed by rolling and rolling through the first roller and the second roller. Adjust the position of the roller to get the desired position of the roller to seal the can.
3. Start and seal the can:
⑴Start the motor, and cover the jar filled with materials.
⑵Put the jar on the lower die of the seamer and straighten the jar.
⑶ Confirm that the position of the can is correct, and that the lid can be closed by pressing the foot switch.
4. Shutdown: Press the power switch button to cut off the power.
Notes of desktop-type paper can sealing machine
1. When relocating the JYD-TDFJ160 Semi-automatic desktop-type paper can sealing machine, more than three people must be required to ensure safety.
2. It is strictly forbidden to pull and squeeze the power cord.
3. It is strictly forbidden to wash the body with water (only wipe it with a damp cloth).
4. It is strictly forbidden to knock and touch the gland.
5. For normal production, it is strictly forbidden to adjust the pressure roller by hand. Factory direct supply JYD-TDFJ160 Semi-automatic desktop-type paper can sealing machine, welcome to buy.
