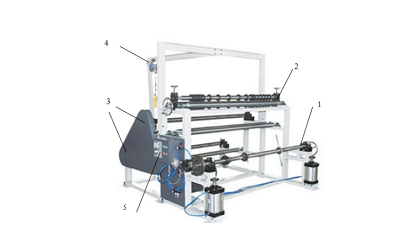

The traction and slitting devices of the JYDFQ-1600A Jumbo paper roll slitter rewinder machine are equipped with automatic pneumatic lifting devices, which are convenient for threading and more humane to operate. The whole machine table and the parts that are likely to cause hygienic effects on the product are all made of 304 stainless steel. JYDFQ-1600A Jumbo paper roll slitter rewinder machine is suitable for cellophane, PET, OPP, CPP, PE, PS, PVC, and computer security labels, electronic computers, optical materials, film rolls, foil rolls, various paper rolls, film rolls, printed cutting of materials.

Performance characteristics JYDFQ-1600A Jumbo paper roll slitter rewinder machine

host part
1. The main structure of the equipment adopts cast iron and steel plate structure (the casting is secondary processing and shaped)
2. The spindle drive rod is made of seamless steel pipe. After quenching and tempering, surface hardening, ironing, dynamic balancing processing
3. JYDFQ-1600A Jumbo paper roll slitter rewinder machine main shaft drive main pressure stick is a rubber stick (Nitrile rubber)
4. The feeding guide rollers are metal rollers (aluminum alloy material) and rubber rollers (nitrile rubber material)
5. The transmission mode of the main engine and the receiving material is a synchronous wheel and synchronous belt transmission
6. All the guide rollers of the machine are processed synchronously (using flat belts and synchronous belts), which can effectively prevent the stretched material from stretching

2. Unwinding mechanism part
1. The feeding mechanism is a conjoined feeding rack
2. Install the movable support, the moving device is a ball screw
3. The unloading adopts shaftless air pressure lifting, which effectively saves labor and is easy to operate.
4. JYDFQ-1600A Jumbo paper roll slitter rewinder machine is equipped with 1 set of offset adjustment devices, which can be fine-tuned left and right through the handwheel
5. The unwinding tension actuator is Taiwan Weizheng brand magnetic powder brake
6. The deviation correction adopts the Puliyuan brand imported from Taiwan to achieve the effect of following the edge of the material

3. Rewinding mechanism part
1. The receiving shaft is equipped with 2 pneumatic slip shafts, which are controlled by an electric proportional valve
2. The locking method adopts pneumatic control
3. The winding tension is controlled by CKD electric proportional valve imported from Japan
4. 1 on the top of the rewinding roller
5. JYDFQ-1600A Jumbo paper roll slitter rewinder machine the cutter adopts pneumatic control, is equipped with 10 cutter holders and can be adjusted manually.
6. Equipped with 1 set of blowing waste device
7. Equipped with 1 set of finished product unloading rack
