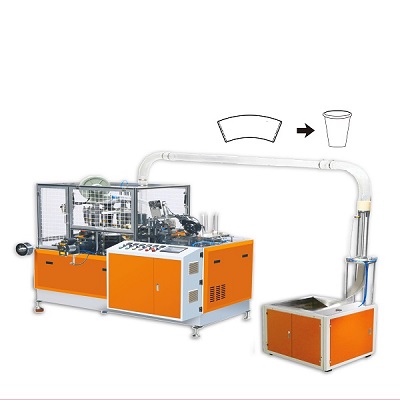

ZSZB-D Automatic middle-speed paper cup forming machine is a multi-station automatic forming machine. It automatically feeds paper (printed paper), seals, oils (lubricates the upper roll mouth), punches the bottom (automatically punches the bottom of the cup from the roll paper), heats, knurling (sealing the bottom of the cup), Continuous processes such as crimping and unloading cup collection, as well as functions such as photoelectric detection, fault alarm, and counting, complete the production process of paper cups. This equipment is an ideal machine for producing beverage paper cups, tea cups, coffee paper cups, advertising paper cups and market paper cups, ice cream paper cups, instant noodle bowls, or other disposable food cone-shaped containers. ZSZB-D Automatic middle-speed paper cup forming machine adopts a microcomputer program to control the frequency converter, stepless speed regulation. Automatic control adopts a light-controlled non-contact switch. The machine adopts gear and vertical shaft transmission and is equipped with a fully automatic closed-loop lubrication system. Compared with the domestic ordinary low-speed chain-driven three-disc paper cup machine, it has a brand-new leap forward!

Technical advantages of Automatic middle-speed paper cup forming machine

1. Using a 125-type indexing box, the machine life is longer;
2. Using a 1:30 100 reducers, the machine is more stable and has a longer life;
3. Using an imported steel shaft of φ30, the machine has a longer service life and is more wear-resistant;
4. The machine is more stable by adopting the method of paper feeding twice, eliminating the problem of warped paper;
5. The multi-layer suction skin of silica gel is used, which has stronger suction and eliminates the problem of leakage.

Features of ZSZB-D Automatic middle-speed paper cup forming machine

1. Automatically process the printed fan-shaped paper (the expanded shape of the cup) into the shape of a paper cup.
2. Use sound waves to bond the cup wall of the paper cup (more hygienic and environmentally friendly).
3. ZSZB-D Automatic middle-speed paper cup forming machine the bottom of the paper cup uses roll paper, which is automatically fed and punched.
4. Bonding of cup body and cup bottom: hot air blowing and bonding.
5. Knurling: When the bottom of the paper cup is glued, a layer of impression is rolled on it through mechanical movement.
6. Curling: The curling of the mouth of the paper cup is formed.
