Description

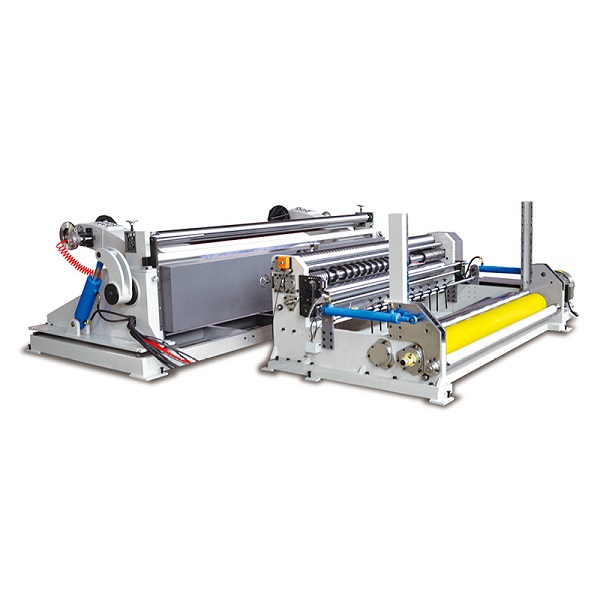

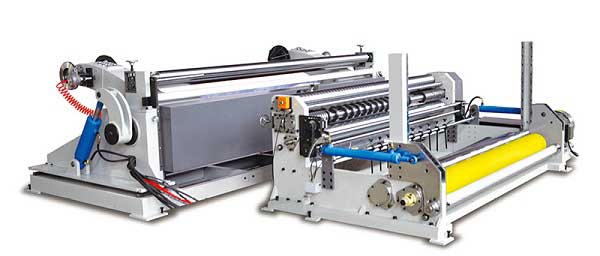

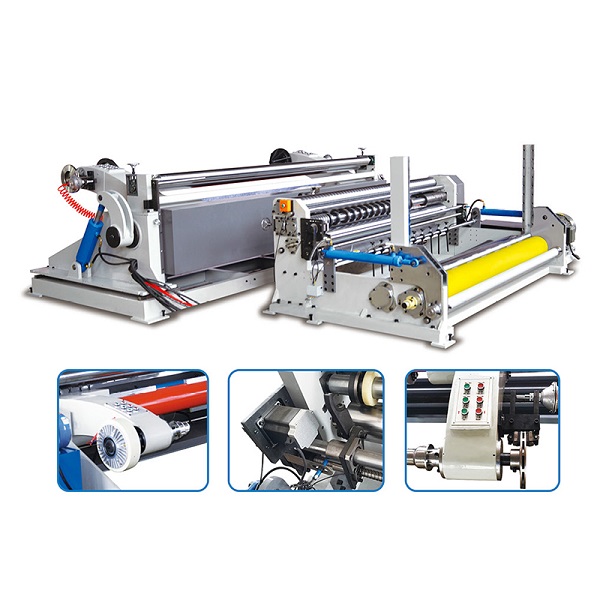

JYDFQ-1600C Automatic Slitting Machine is suitable for slitting and rewinding all kinds of jumbo roll paper with 1.6m width such as kraft paper, bobbin paper, tea board paper, straw paper, printed paper, and coated paper.

Automatic Slitting Machine Features

1. Pneumatic brake, easy to operate.
2. PLC control makes the operation more convenient.
3. The paper is loaded by a hydraulic shaftless paper holder.
4. JYDFQ-1600C Automatic slitting machine hydraulic unloading, is safe and reliable.

Technical parameter of JYDFQ-1600C Automatic high speed slitting machine

Here is the automatic paper slitting machine youtube video working process in our facotry for your reference!!

JYDFQ-1600C Slitting Machine For Paper Roll

1. The hydraulic system occupies a small area and saves space.

2. The independent leveling shaft reduces the phenomenon of inconsistency in the left and right tightness of inclined paper.

3. JYDFQ-1600C automatic high-speed slitting machine unloads pneumatically after winding, which is labor-saving and convenient.

4. JYDFQ-1600C automatic high-speed slitting machine host motor (11kw), with adjustable speed function. It is convenient to adjust the production speed.

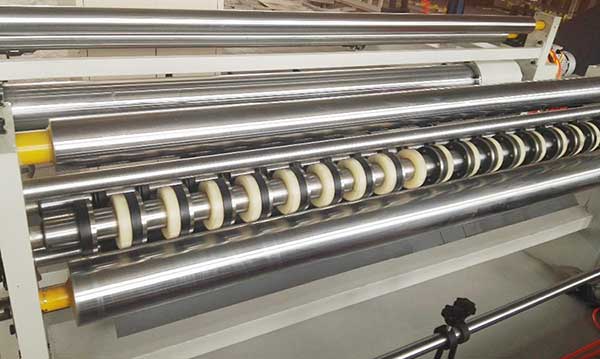

5. The unique curved roll slit structure completely avoids paper overlapping during rewinding. The curvature of the bending roller can be adjusted at any time according to the paper.

6. The independent paper separation part provides enough space for the operator to adjust the cutter and pull the paper. Stationary bedknife avoids “S” bends in the slitting strip.

7. Applicable base paper weight 80-600g; base paper diameter 1200mm; base paper width 1600mm; cutting width ≥ 30mm (tools can be configured according to different needs of customers).

8. The rubber rollers of the winding part are made of polyester material, which is wear-resistant, compressive, non-deformable and non-slip, and is the best choice for paper roll winding.

9. The way of rolling paper is that the air expansion shaft shrinks outward. Air shaft conveying completely avoids the phenomenon that the traditional conveying rollers are separated from the shaft.

10. The inverter is an Ruiji product, a well-known domestic brand, with high practical value, low failure rate and low repair rate. The motor adopts frequency conversion control to realize the adjustment of machine speed.

11. Independently operate the electric box, which is beneficial to the operation of the whole machine. Its main executive parts are Chint products; cylinder parts are all Tianao products. These are old-fashioned products in our country, with the characteristics of durability and high practical value.

12. The paper feeding method is shaftless hydraulic paper feeding, which is stable and replaces the traditional shaft paper feeding, making paper feeding faster and more labor-saving. The handle type electric paper clip is more convenient and flexible to operate. At the same time, it is equipped with double brakes, which makes the paper pulling force more uniform and powerful, and overcomes the unwinding phenomenon caused by insufficient pulling force of the single brake.

Except the paper slitting machine ,we also support paper tube making machine, paper tube cutting machine etc paper processing machineries, if you also interested in the paper processing machine, welcome tocontact us freely!!
