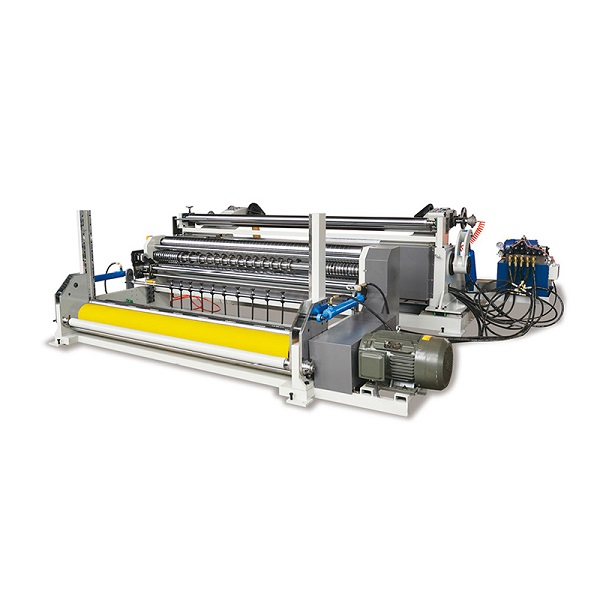

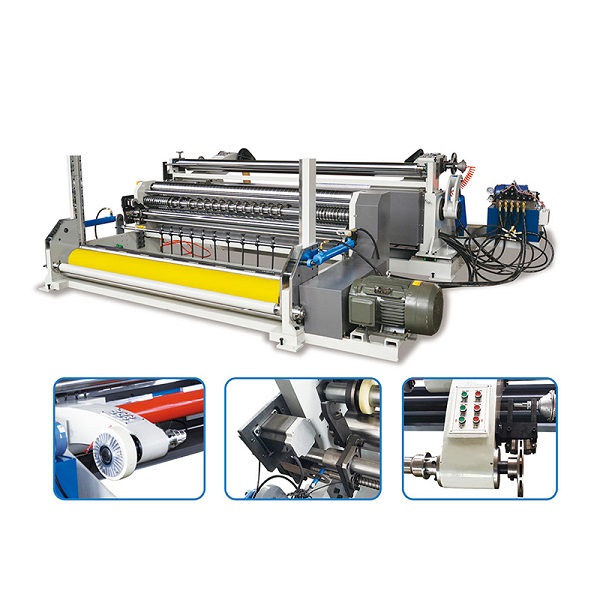

JYDFQ-2500D paper slitting and rewinding machine is suitable for slitting and rewinding all kinds of 2.5m width jumbo paper roll such as kraft paper, bobbin paper, tea board paper, straw paper, printing paper, and coated paper.
Whatsapp：
+86 17838313979E-mail：
[email protected]JYDFQ-2500D paper slitting and rewinding machine is suitable for slitting and rewinding all kinds of 2.5m width jumbo paper roll such as kraft paper, bobbin paper, tea board paper, straw paper, printing paper, and coated paper.
1. Hydraulic unloading, is safe and reliable.
2. PLC control makes the operation more convenient.
3. The paper is loaded by a hydraulic shaftless paper holder, which is convenient, fast, and labor-saving.
4. Magnetic powder automatic braking can keep constant tension in the slitting process and make the winding smooth.
5. YDFQ-2500D paper slitting and rewinding machine CNC tool adjusting device avoids the troublesome error of manual measurement.
| Width of the base paper | 2500(mm) |
| Base paper diameter | 1200(mm) |
| Rewinding diameter | 1200(mm) |
| Slitting width | >35(mm) |
| Base paper weight | 80-600g |
| Number of cutters | 18pcs |
| Slitting speed | 1-300（m/min) |
| Speed control | Frequency control |
| Main power | 22kw |
| total weight | 5900kg |
Here is the paper slitting and rewinding machine youtube video working process in our factory for your reference!!

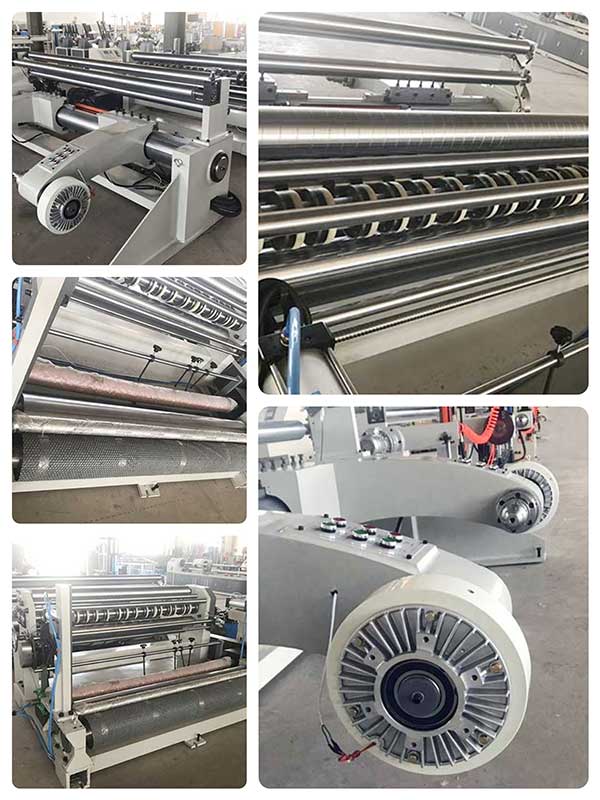

1. The main engine motor (11kw) with an adjustable speed function. It is convenient to adjust the production speed.
2.YDFQ-2500D slitting and rewinding machine the independent leveling shaft can reduce the inconsistency of the left and right tightness of the slanted paper.
3. The inverter with high practical value, low failure rate, and low repair rate. The motor is controlled by frequency conversion, so as to the adjustment the machine speed.
4. TF-2500D slitting and rewinding machine can be used in a wide range. Applicable jumbo paper roll diameter 1200mm; base paper weight 80-600g; base paper width 2500mm; slitting width ≥ 30mm (tools can be configured according to different needs of customers).
5. .The paper feeding method is shaftless hydraulic feeding, which is stable and replaces traditional shaft feeding, which makes feeding faster and saves labor. The handle-type electric paper clip makes the operation more convenient and flexible. At the same time, it is equipped with double brakes to make the paper pulling force more even and powerful, which overcomes the unwinding phenomenon caused by the insufficient pulling force of a single brake.
After slitting and rewinding the paper roll, we also can support you the paper tube making machine, paper tube cutting machine, etc , paper processing machine, if you have any request of the paper processing machine, welcome to contact us freely!!
