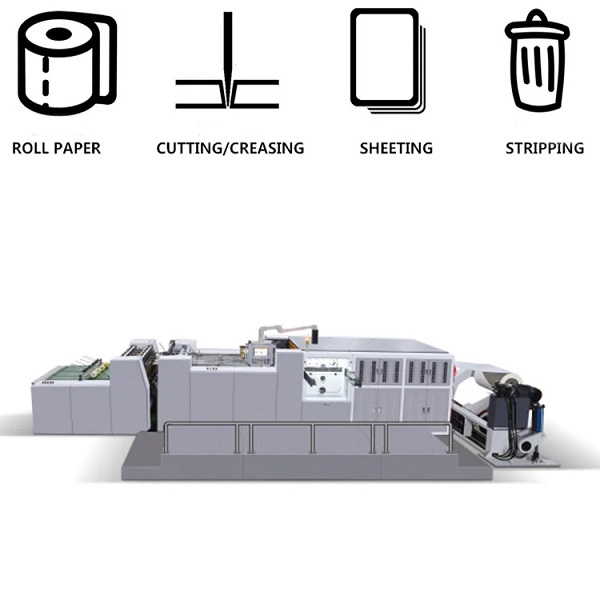

PY-1200S Roll die-cutting and creasing machine can complete full steps from roll to finished product including die cutting, creasing, stripping, and collection.
Whatsapp:
+8617838313982E-mail:

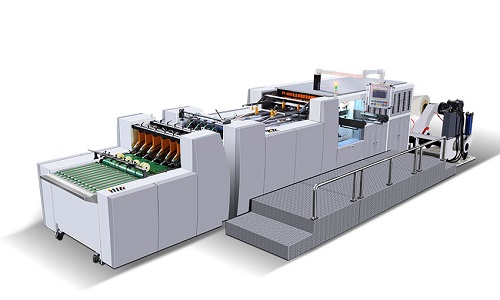

[email protected]PY-1200S Roll die-cutting and creasing machine is an ideal equipment for producing paper cups fans, paper boxes, cards, etc of post-press packaging. Easy and safe operation, High efficiency.
Type: | PY-1200S |
Cut Precision: | ± 0.10mm |
Capacity | 90-150times/min |
Max cutting size: | 1200 x640mm |
Max feeding Width: | 1200mm |
Suitable Material: | 120-600g/m2 Pe coated paper, cardboard paper, Kraft paper, etc |
Maximum Pressure: | 350T |
Total Power: | 32KW |
Weight: | 14.5T |
Overall Dimension: | 10200 x 4250 x 2000 mm |
Working Air Source: | Air pressure 0.5-0.7Mpa |
1. The normal working, speed is 90-120 times per minute. It has the ability to die-cutting, crease, sheet, strip, and collect.
2. Imported servo motor driving, imported color sensor recognition, new sheeting design(the old type uses rod flapping to sheeting),full-stripping by pinheads, and automatic stack collecting.
3. Worm wheel and worm transmission system ensure powerful and steady pressure. Lubricating with oil circulation and alarming when lacking oil.
4. Equipped shaftless unwinding unit, and use the pneumatic brake and multilevel tension controller to control roll paper unwinding.
5. PY-1200S Roll die-cutting and creasing machine uses PLC as its control center, in coordination with original LG electrical elements from KOREA, original Panasonic sensor from JAPAN, and original SHAKO and KINGMAN pneumatic parts.
6. Alarming system: lubrication blocking alarming, paper feeding blocking alarming, limit alarming, stripping failed alarmingly.
7. The main body is much stronger. We use the more thick steel board and cast iron board instead of the normal ones.
